Cable Accessories - GXOS/E - 1236 - Series Heat Shrinkable Terminations Suitable for Single Core XLPE/EPR/PVC Insulated Cables For 36kV
Cable accessories

Descriptions : GXOS / E - 1236 - Series Class I termination kits are Heat Shrinkable terminations kits designed for Single Core extrude dielectric, shielded, armored & unarmored cable accessories upto 36kV rated voltage.

BILL OF MATERIAL STD. PACKING KIT ( + )

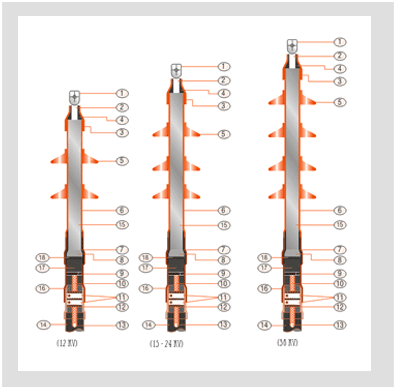

  • Cable Components
  • Kit Components
  • Installation aids & Accessories (Part of std. kits)
  • Cable Components
  • No
  • Descriptions
  • 2.
  • Conductor
  • 14.
  • Outer Sheath
  • 15.
  • XLPE Insulation
  • 16.
  • Armour
  • 17.
  • Metal Shied
  • 18.
  • Semi-Conducting Screen
  • Kit Components
  •
  • No
  • Descriptions
  • Qty .
  • 1.
  • Terminal Lug
  • 1 No
  • 3.
  • Heat Shrinkable Adhesive Lined Terminal Sleeve
  • 1 No
  • 4.
  • Lug Sealing Tape/Mastic Stripe
  • 1 Strips.
  • 5.
  • Rain Sheds
  •
  •
  • 12 KV System
  • 2 Nos.
  •
  • 24 KV System
  • 3 Nos.
  •
  • 36 KV System
  • 4 Nos.
  • 6.
  • Anti Tracking Sleeve
  • 1 No.
  • 7.
  • Stress Control Sleeve
  • 1 No.
  • 8.
  • Stress Control Mastic
  • 1 Strips.
  • 9.
  • Constant Force Spring Roll (Alternatively Solder Tack)
  • 1 No.
  • 10.
  • Copper Braid for Screen Earthing
  • 1 No.
  • 11.
  • Worm Drive Clip
  • 1 No.
  • 12.
  • Adhesive Lined Gland Sleeve (only for armoured cables)
  • 1 No.
  • 13.
  • Tinned Copper Braid duly fitted with Terminal Lug at One end + Solder block
  • 6 No.
  • Installation Aids & Accessories (Part of std. Kits)
  •
  • No
  • Descriptions
  • Qty .
  • 1
  • Mastic Sealing Tape
  • 1 Roll.
  • 2
  • Silicone Grease
  • 1 No.
  • 3
  • Cleaning Tissue
  • 2 Nos.
  • 4
  • Nylong String for Cutting XLPE Insulation
  • 1 No.
  • 5
  • Aloxite Emery Tape
  • 3 Pc.
  • 6
  • Mopping Cloth
  • 1 Pc.
  • 7
  • Installation Instruction Manual
  • 1 No.
Electrical Performance (12 kV Rated Accessories)
  • Tests
  • 12 kv System (6.6/6.6 KV,6.35/11KV)
  • 15-24kV System (8.7/15KV,11/11KV,12.7/22KV)
  • 36kV (19/33KV)
  • A.C. Dry Withstand 1 Minute
  • 35KV/1 minute
  • 50KV/1 Minute
  • 75KV/1 Minute
  • DC Withstand 1 Minute
  • 48 KV
  • 96 KV
  • 144 KV
  • Lightening Impulse withstand Voltage
  • 75 KV
  • 125 KV
  • 170 KV
  • Impulse Withstand (Crest kV)
  • 75 kV (Min)
  • 125 kV
  • 170 KV (Min)
  • Partial Discharge
  • 12.7 Kv < 5 Pc
  • 25 Kv < 5 Pc
  • 38 Kv < 5 Pc
Accessories and optional items
  • Standard Tail Length is 900, 800 & 600mm for outdoor and 700, 550, 450mm for indoor termination for 36Kv, 24Kv & 12Kv respectively.
  • Solderless and special purpose earthing kits also available on request.
  • Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.

    Note

  • All kits are supplied with full kit contents for making a termination.
  • Rain sheds for indoor termination 12 kV - No Rain shed, 15 -24 kV - 1 No. Rain shed, 36 kV - 2 Nos. Rain sheds.
Ordering Informations
  • 12 KV System
  • 15 - 24 KV System
  • 36 KV System
  • Cable size (sq. mm)
  • Kit Code
  • Cable size (sq. mm)
  • Kit Code
  • Cable size (sq. mm)
  • Kit Code
  •
  • Indoor
  • Outdoor
  •
  • Indoor
  • Outdoor
  •
  • Indoor
  • Outdoor
  • 16-50
  • GXES-11
  • GXOS-11
  • 16-50
  • GXES-21
  • GXOS-21
  • 25-50
  • GXES-31
  • GXSS-31
  • 70-120
  • GXES-12
  • GXOS-12
  • 70-120
  • GXES-22
  • GXOS-22
  • 70-185
  • GXES-32
  • GXSS-32
  • 150-300
  • GXES-13
  • GXOS-13
  • 185-300
  • GXES-23
  • GXOS-23
  • 240-500
  • GXES-33
  • GXSS-33
  • 400-630
  • GXES-14
  • GXOS-14
  • 400-630
  • GXES-24
  • GXOS-24
  • 630-800
  • GXES-34
  • GXSS-34
  • 800-1000
  • GXES-15
  • GXOS-15
  • 800-1000
  • GXES-25
  • GXOS-25
  • 1000
  • GXES-35
  • GXSS-35
