Heat Shrinkable Joints & Terminations

Cable Terminations - GLT - 1100 - Series Heat Shrinkable Terminations Suitable for PVC/XLPE Cables upto 3.3kV.

Descriptions : GLT - 1100 - Series Heat Shrinkable terminations kits designed for 1, 2, 3, 3?, 4, Core extruded Solid dielectric (XLPE / PVC) & paper insulated cable (Armoured / Un-Armoured) of 1.1kV & 3.3 kV rating.

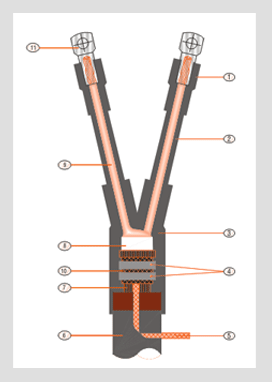

BILL OF MATERIAL STD. PACKING KIT ( + )

Cable Components

Kit Components

Installation aids & Accessories (Part of std. kits)

Cable Components

No
Descriptions

1.
Outer Sheath

2.
Armour

3.
Inner Sheath

4.
Cable Insulation

Kit Components

No
Descriptions
Qty .

1.
H. S. Terminal Sleeve
4 Nos.

2.
Insulations Sleeve*
4 Nos.

3.
H. S. Cable Breakout
1 No.

4.
Jubilee Clamp
1 No.

5.
Tinned Copper Braid
1 Roll.

6.
Black Mastic Sealant Tape
4 Nos.

7.
Terminal Lug
1 No.

Installation aids & Accessories (Part of std. Kits)

No
Descriptions
Qty .

1
Cleaning Tissue
2 Nos.

2
Mopping Cloth
1 No.

3
Installation Instruction Manual
1 No.

Electrical Performance
Tests	Parmeter For Evaluation	Test Voltage Hightest Voltage Umax (kV)		Result
Insulation Resistance	1 mn. 500 V Dc	-	-	>10’ Ω
A.C. High Voltage Test (Dry)	15 min.	4	8	No Breakdown & no Flashover
Impulse Witstand Test at Ambient Temperature	10 Positive & 10 Negative	8	12	No Breakdown & no Flashover
Heating Cycle Test	63 cycles, 8 Hour Cycle, 5 hrs. heating & 3 hrs. cooling	-	-	No Breakdown & no Flashover
Insulation Resistance after Impact Test (Immersed)	1 min. 500 V Dc	-	-	>10’ Ω
Impulse Withstand Test at Elevated Temperature	10 Positive & 10 Negative Conductor temperatur 95 to 100°C	8	12	No Breakdown & no Flashover
Heating Cycle Test	63 cycles, 8 Hour Cycle, 5 hrs. heating & 3 hrs. cooling	-	-	No Breakdown & no Flashover
D.C. High Voltage Test (Dry)	5min	15	21	No Breakdown & no Flashover
