Thin Wall Tubes

GLC3: Commercial Grade Tubing
Thin Wall Tubes

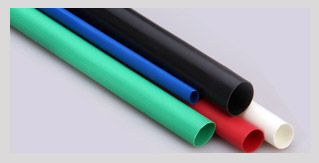

GLC3 (3:1) is Heat Shrink Thin Wall Tube, designed to be used in critical areas such as Tunnels & Mines.

GENERAL PROPERTIES OF PRODUCT :
  • Shrink ratio 3:1
  • For Electrical Insulation upto 600 volts.
  • Standard Colors: Black, White, Yellow, Red, Blue, Green and Clear.
  • Meets RoHS Compliance

SPECIFICATIONS :

ASTM, IEC

SELECTION CHART

All dimensions are in mm

  • Part
  • Internal Diameter (mm)
  • Recovered Wall
  • Packing Configurations
  • Number / Size
  • Supplied
  • Recovered
  • Thickness (mm)
  • Spools Meters/Spool
  • Cut Lengths 1.2 meter/box
  • GLC3-1.5/0.5
  • 1.5mm
  • 0.5 mm
  • 0.45 +0.10
  • 200
  • 1000
  • GLC3-3.0/1.0
  • 3.0 mm
  • 1.0 mm
  • 0.55 +0.10
  • 200
  • 500
  • GLC3-6.0/2.0
  • 6.0 mm
  • 2.0 mm
  • 0.65 +0.10
  • 50
  • 200
  • GLC3-9.0/3.0
  • 9.0 mm
  • 3.0 mm
  • 0.75 +0.20
  • 50
  • 150
  • GLC3-12.0/4.0
  • 12.0 mm
  • 4.0 mm
  • 0.75 +0.20
  • 50
  • 120
  • GLC3-18.0/6.0
  • 18.0 mm
  • 6.0 mm
  • 0.85 +0.10
  • 50
  • 80
  • GLC3-24.0/8.0
  • 24.0 mm
  • 8.0 mm
  • 1.00 +0.20
  • 50
  • 40
  • GLC3-39.0/13.0
  • 39.0 mm
  • 13.0 mm
  • 1.15 +0.20
  • 25
  • 20
TECHNICAL DATA
  • PROPERTIES
  • TEST METHOD
  • TYPICAL VALUE
  • Physical
  •
  •
  • Tensile Strength
  • ASTM-D-638
  • 14 N/mm2 (Min.)
  • Elongation
  • ASTM-D-638
  • 300%(Min.)
  • Water Absorption
  • ASTM-D-570
  • 0.15% (Max.)
  • Specific Gravity
  • ASTM-D-792
  • 1.0
  • Longitudinal Change
  • ASTM-D-638
  • -10% (Max.)
  • Thermal
  •
  •
  • Operating Temperature
  • IEC216
  • -55oC to + 125oC
  • Heat Shock
  • 250°C for 4 hrs
  • No dripping, Cracking or flowing
  • Chemical
  •
  •
  • Fungus Resistance
  • MIL-1-7444
  • Inert
  • Copper Corrosion
  • ASTM-D-2671-B
  • Good
  • Chemical Resistance
  • ASTM-D-2671
  • Good
  • Electrical
  •
  •
  • Dielectric Strength
  • ASTM-D-2671
  • >20kv/mm
  • Dielectric Constant
  • ASTM-D-150
  • 3.0 (Max.)
  • Volume Resistivity
  • ASTM-D-257
  • 1014 Ohm cm(Min.)
