MV Cable Joints - Cable Splicing Kit

Cable Joints - GXLT/GPLT- Series - Heat Shrinkable Straight Through MV Cable Joints & Cable Splicing Kit Suitable for PVC / XLPE/ PILC Cables upto3.3kv
Semi Conductive Cable Breakout

Descriptions : GXLT / GPLT - Series Heat Shrinkable Straight Through Joints kits designed for 1, 2, 3, 3 & 4 Core extruded Soild dielectric (XLPE/PVC) & paper insulated MV cable joints & Cable Splicing Kit (Armoured / Un-armoured) of 1.1kV & 3.3kV rating.

  • No
  • Descriptions
  • No
  • Descriptions
  • No
  • Descriptions

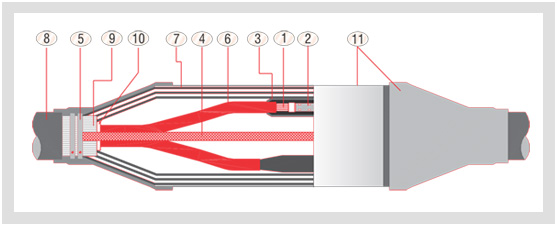

  • 1
  • Conductor (Aluminium/copper)
  • 5
  • Worm Drive Clamps
  • 9
  • Cable Armour
  • 2
  • Inline Connector (Ferrule)
  • 6
  • Cable Insulated Core
  • 10
  • Inner sheath
  • 3
  • Insulation Sleeve
  • 7
  • Wraparound Joint Case
  • 11
  • Outer Jacketing Sleeves
  • 4
  • Armour Continuity Connection
  • 8
  • Outer Sheath
  •
  •

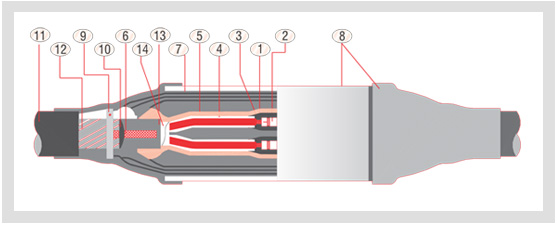

Transition Joint
  • No
  • Descriptions
  • No
  • Descriptions
  • No
  • Descriptions
  • 1
  • Conductor (Aluminium/copper)
  • 6
  • Armour/Iead Sheath Continuity System
  • 11
  • Outer Sheath
  • 2
  • Inline Connector (Ferrule)
  • 7
  • Wraparound Joint Case
  • 12
  • Armour
  • 3
  • Insulation Sleeve
  • 8
  • Outer Jacketing Sleeve
  • 13
  • Lead Sheath
  • 4
  • Oil Barrier Tubing
  • 9
  • Cable Armour
  • 14
  • Paper Inner Sheath
  • 5
  • Inner Protective Tubing
  • 10
  • Plumb
  •
  •
Guaranteed Technical Particulars in compliance with IEC 60502, 60060 & 60230
  • Test Sequence
  • Parameter for Evaluation
  • Test Voltage Highest Voltage Umax (Kv)
  • Result
  • 1.1
  • 3.3
  • Insulation Resistance
  • 1 mn. 500 V Dc
  • --
  • --
  • >103O
  • A.C. High Voltage Test (Joint Immersed In Water)
  • 5 min.
  • 3.5
  • 6
  • No Breakdown & no Flashover
  • Impulse Witstand Test at Ambient Temperature
  • 10 Positive & 10 Negative
  • 8
  • 12
  • No Breakdown & no Flashover
  • Insulation Resistance
  • 1 min. 500 V Dc
  • --
  • --
  • >10 3
  • Heating Cycle Test in Water (for Straight Through Joint)
  • 63 cycles 5 hrs. heating & 3 hrs. cooling Conductor temperature 95°C
  • --
  • --
  • >No Breakdown & no Flashover
  • Insulation Resistance after Impact Test (Immersed)
  • 1 min. 500 V Dc
  • --
  • --
  • >10 3
  • Impulse Withstand Test at Elevated Temperature
  • 10 Positive & 10 Negative Conductor temperatur 95 to 100&deg
  • 8
  • 12
  • No Breakdown & no Flashover
  • D.C. High Voltage Test (Dry)
  • 5 min
  • 15
  • 21
  • No Breakdown & no Flashover
Ordering Informations
  • Cable Size
  • Kit Code
  • Kit Code
  • 4x1.5-6
  • GXLT-1
  • GXLT-11
  • 4x10-16
  • GXLT-2
  • GXLT-12
  • 4x25-50
  • GXLT-3
  • GXLT-13
  • 4x70-150
  • GXLT-4
  • GXLT-14
  • 4x185-400
  • GXLT-5
  • GXLT-15

    NOTE :

  • All Kind of Kits are supplied with full kit contents for making a joint.
  • Galvanised mesh application is an alternative design replacing wrapparound joint case.
