PVC Terminal Cap - TERMICAP
  • dock-1
  • dock-2

Termi Cap is made from high quality flexible PVC (Polyvinyl Chloride) Material.

  • Used for insulating and protecting wire end terminal.
  • Available in customs size, shape and colours.
  • Ideal for Insulating & colour coded identification of terminal crimped on to the power cable.
Standards :

Tested to ANSI C 37.20.2 Standards for medium voltage switchgear application to 36KV.

Support Isulator, Polymeric Insulators

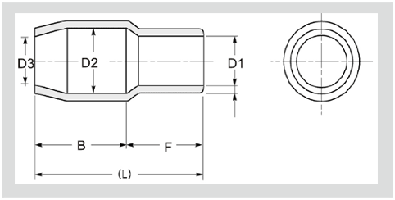

SELECTION CHART
  • TYPE
    mm
  • D1
    mm
  • D2
    mm
  • D3
    mm
  • L
    mm
  • F
  • TCV 12
  • 3.2
  • 3.5
  • 3
  • 15
  • 8
  • TCV 21
  • 3.5
  • 4.5
  • 3.8
  • 18
  • 10
  • TCV 50
  • 4.5
  • 5.5
  • 4.5
  • 21
  • 10
  • TCV 53
  • 5
  • 6
  • 5
  • 25
  • 10
  • TCV 60
  • 8
  • 10
  • 8
  • 27
  • 13
  • TCV 221
  • 9.5
  • 12
  • 8
  • 30
  • 16
  • TCV 381
  • 12
  • 14
  • 10
  • 35
  • 18
  • TCV 601
  • 14
  • 16.5
  • 14
  • 42
  • 23
  • TCV 100
  • 18
  • 22
  • 16
  • 54
  • 26
  • TCV 501
  • 22
  • 24
  • 22
  • 67
  • 33
  • TCV 2501
  • 26
  • 37
  • 26
  • 79
  • 38
  • TCV 3251
  • 30
  • 37.5
  • 30
  • 78
  • 38
TECHNICAL SPECIFICATION
  • PROPERTIES
  • VALUE
  • STANDARD
  • Dielectric Strength
  • 12 KV / mm. (min.)
  • ASTM D149
  • Tensile Strength
  • 12 N/mm2 (Mpa) (min.)
  • ASTM D638
  • Elongation
  • 350% (min.)
  • ASTM D638
  • Density
  • 1.23 gm/cm3
  • ASTM D792
  • Hardness
  • 65 ± 5 shore A
  • ASTM D2240
  • Continuous Operating Temp.
  • -20°C to 115°C
  • IEC 216
  • Flammability
  • Pass
  • UL 94-V0
