Fibre Optics Closure - INSULTUBE commercial

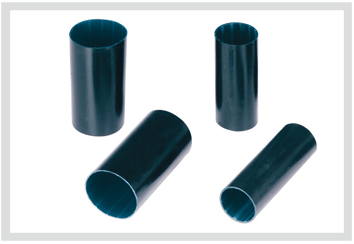

Insultube-Commercial (GSF) is heat shrinkable tubing, used in the installation of Fibre Optic Closure. These tubes are designed to insulate & seal the inlet of Cable to the base of Fibre Optic Closure.
It is manufactured from high quality cross linked polyolefin material.
Features & benefits :
- Excellent resistance to weathering, Moisture, Contamination and adverse environmental conditions.
- Hot melt adhesive provide perfect environmental seal on cable sheath.
- Excellent resistance to UV rays, Ozone, Chemicals & Solvents.
- Lightweight and Flexible.
- Provides mechanical strain relief.
- Easily re-enterable.
- Meets IP 68 (Ingress Protection)
SELECTION CHART
- Code
- DIAMETER
- T±10% (mm)
- Suppled
- Recovered
- Recovered
- GSF 12/4
- 12
- 4
- 2.0
- GSF 17/6
- 17
- 6
- 2.0
- GSF 30/8
- 30
- 8
- 2.5
- GSF 35/12
- 35
- 12
- 2.5
- GSF 40/16
- 40
- 16
- 2.5
- GSF 50/20
- 50
- 20
- 2.5
- GSF 65/22
- 65
- 22
- 2.5
- GSF 75/25
- 75
- 25
- 3.0
TECHNICAL SPECIFICATION
- PROPERTIES
- VALUE
- STANDARD
- Physical
- Tensile Strength
- 11 N/mm2 (MPA)(min.)
- ASTM D638
- Ultimate Elongation
- 350% (Min.)
- ASTM D638
- Longitudinal Change
- - 10% (Max.)
- ASTM D2671
- Water Absorption
- 0.5 % (max.)
- ASTM D570
- Thermal
- Accelerated Ageing
- (120oC for 500 Hrs)
- ASTM D2671
- Tensile Strength
- 11 N/mm2 (MPA)(min.)
- ASTM D638
- Ultimate Elongation
- 300 % (Min.)
- ASTM D 638
- Low temperature Flexibility (-40oC for 4 Hrs.)
- No Cracking
- ASTM D2671
- Heat Shock (250oC for 30 Min.)
- No Cracking or flowing
- ESI 09-11
- Continuous Temperature limit
- -40°C to + 110°C
- IEC 216
- Electrical
- Dielectric Strength
- 12 KV/mm. (Min.)
- ASTM D149
- Volume Resistivity
- 1 x 1014 Ohm.cm(min.)
- ASTM D257
- Dielectric Constant
- 5 (Max.)
- ASTM D150
