Polymeric Standoff Insulators/ Support Insulators

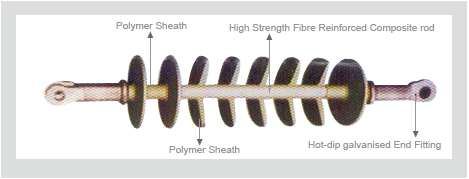

Polymeric Insulator (Support Insulator) consists of a fiberglass core covered with weather resistance polymeric shedded sleeve and aluminium end fittings. These insulators offer significant advantage like better performance in highly polluted environment, flame / arc resistance, resistance to chemicals and UV rays and are Vandal proof.
- Specally designed polymeric material used in these insulators have a self cleaning property.
- Surface hydrophobicity is maintained over a long period.
- Unbreakable, compact and light weight compared to porcelain insulators.
- Metal end fitting as per customers requirement.

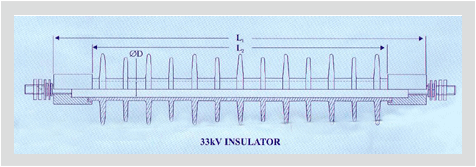

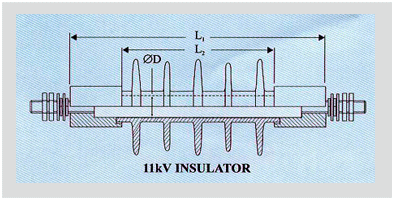

SELECTION CHART
- Voltage
- L1
- L2
- ØD
- 11 KV
- 240 ± 5mm
- 140 ± 3mm
- 31 ± 2mm
- 25 KV/33KV
- 430 ± 15mm
- 330 ± 10mm
- 31 ± 2mm
TECHNICAL SPECIFICATION
- PROPERTIES
- VALUE
- STANDARD
- 11 KV
- 25 KV / 33 KV
- Creepage Distance
- 310 mm
- 1050 mm
- Measurement
- Wet one minute power frequency withstand voltage
- 38 KV
- 75 KV
- ASTM D-149/IEC 60
- Lighting impulse withstand voltage
- 95 Kvp
- 170 Kvp
- ASTM D-3426/IEC 60
