Outdoor Termination - Heat Shrinkable Joints

Cable Terminations - GPO/E - 1524 - Series Heat Shrinkable Outdoor Termination Suitable for 3 Core Paper Insulated Lead Covered MIND Cable For 24 kV
Semi Conductive Cable Breakout

Descriptions : GPO / E - 1524 - Series Class I termination kits are Heat Shrinkable Outdoor Termination kits designed for 3 Core Screened, Paper Insulated Lead Sheathed / Armour Cable UPTO 24kV .

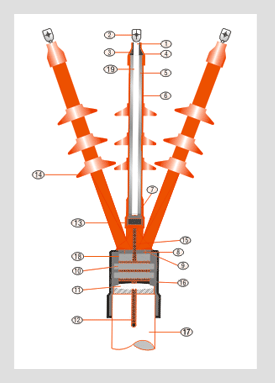

BILL OF MATERIAL STD. PACKING KIT ( + )
  • Cable Components
  • Kit Components
  • Installation aids & Accessories (Part of std. kits)
  • Cable Components
  • No
  • Descriptions
  • 1.
  • Conductor
  • 17.
  • Outer Sheath
  • 18.
  • Lead Sheath
  • 19.
  • Paper Insulated Core
  • Kit Components
  •
  • No
  • Descriptions
  • Qty .
  • 2.
  • Terminal Lug
  • 3 Nos.
  • 3.
  • Lug Sealing Mastic
  • 3 Strips
  • 4.
  • Heat Shrinkable Adhesive Lined Terminal Sleeve
  • 3 Nos.
  • 5.
  • Heat Shrinkable Oil barrier Sleeve
  • 3 Nos.
  • 6.
  • Heat Shrinkable Non Tracking Weather Resistant Tubing
  • 3 Nos.
  • 7.
  • Stress Control Tubing
  • 3 Nos.
  • 8.
  • Glass Cushion Tape
  • 1 Roll.
  • 9.
  • Heat Shrinkable Belting Oil Barrier Sleeve
  • 1 No.
  • 10.
  • Worm Drive Clips (Optional)
  • 2 Nos.
  • 11.
  • Earthing Plumb (Connection of Lead Sheath to Armour)
  • 1 Set.
  • 12.
  • Tinned Copper Brand (Main Earthing)
  • 1 No.
  • 13.
  • Stress Control Mastic
  • 3 Strips
  • 14.
  • Rain Sheds
  • 9 Nos.
  • 15.
  • Insulaton Shield Continuting (Small Copper Braid+Copper Wire)
  • 1 Set.
  • 16.
  • Heat Shrinkable Conducting Breakout
  • 1 No.
  • Installation aids & Accessories (Part of std. Kits)
  •
  • No
  • Descriptions
  • Qty .
  • 1
  • Mastic Sealing Tape
  • 1 Roll.
  • 2
  • Cleaning Solvent
  • 1 Bottle.
  • 3
  • Emery Sheet
  • 1 No.
  • 4
  • Mopping Cloth
  • 1 Pc.
  • 5
  • Installation Instruction Manual
  • 1 No.
Electrical Performance (12 kV Rated Accessories)
  • Tests
  • Requirement
  • Typical Value
  • A.C. Dry Withstand Voltage
  • 50 kV / 1 Minute
  • Pass
  • D.C. Voltage Withstand Test
  • 96 kV / 15 Minutes
  • Pass
  • Lightening Impulse Withstand Voltage
  • 125 kV
  • > 125 kV
Accessories and optional items
  • Standard Tail Length is 800mm for and 550mm for indoor terminations. Special tail lengths available on request.
  • Solderless and special purpose earthing kits also available on request.
  • Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.

    Note

  • All kits are supplied with full kit contents for making a termination.
  • All Indoor terminations shall have 1 No. Rain shed on each core.
Ordering Informations
  • Cable size (sq. mm)
  • Outdoor Kit Code
  • Indoor Kit Code
  • 25-50
  • GPO-21
  • GPE-21
  • 70-120
  • GPO-22
  • GPE-22
  • 150-240
  • GPO-23
  • GPE-23
  • 300-500
  • GPO-24
  • GPE-24
