Cold Shrink Breakout

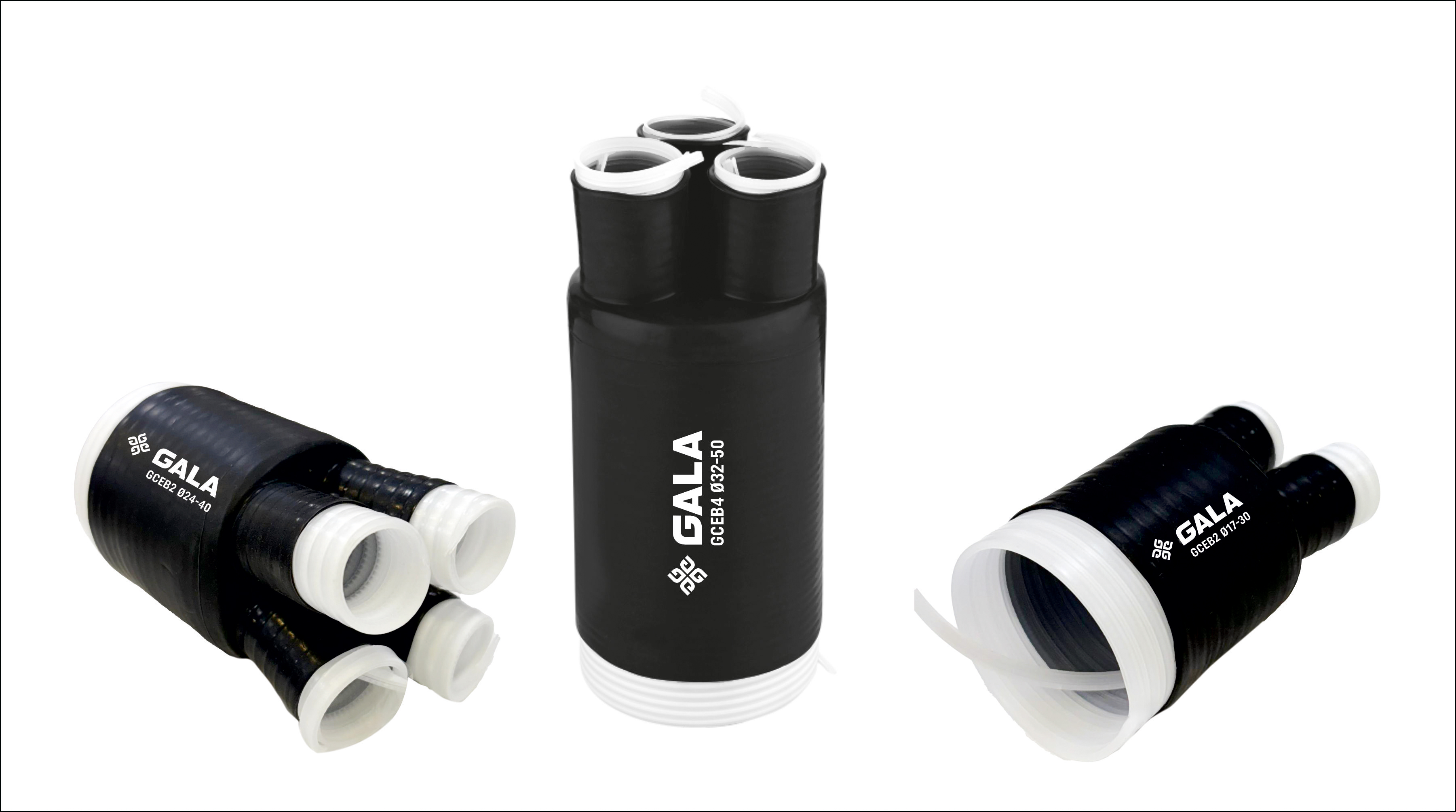

Gala Cold Shrink Breakout are factory expanded and assembled onto a removable core. It provides sealing protection or multi core cable crutch. The insulating cable breakout is made of high quality EPDM Rubber which does not contain chloride or sulfur. It covers wide range of cable sizes.
Features & Benefits:
- Simple and fast installation, no tools required.
- Accommodates a wide range of cable sizes.
- Seals tight, retains resiliency for years.
- Good abrasion resistance.
- Water resistance.
- No mastic or tape required.
- Resists acids and alkalis.
- Resists ozone.
- No training required for installation.
- Resists fungus.
- Good thermal stability.
- Excellent wet electrical properties.
- Tough rubber formulation withstands backfilling.
- Operating temperature range -40°C to 90°C
- Water resistance, meets the water seal requirements of ANSI C119.1
- No torches or heat required.

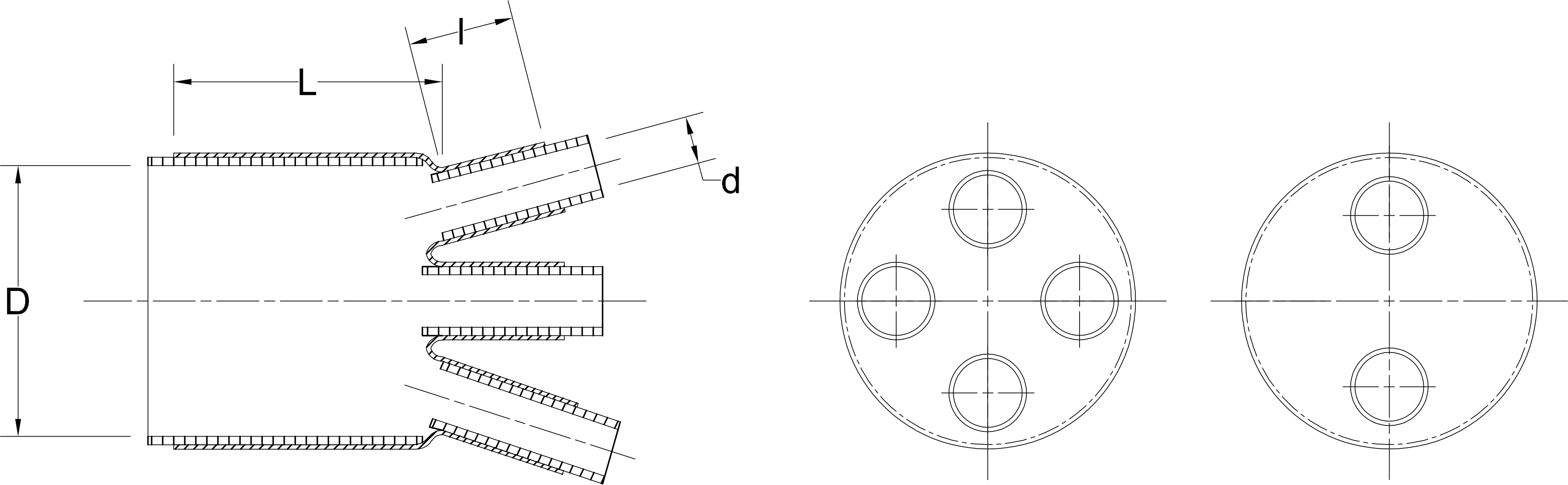

All dimesions are in mm
| Selection Chart | |||||||
|---|---|---|---|---|---|---|---|
| Code No. | No. of Core | Ds (min.) | Application Range | ds (min.) | Application Range | Lf (Max.) | lf (max.) |
| GCEB2 - 1 | 2 | 47 | Ø17 - Ø30 | 20 | Ø10 - Ø14 | 50 | 30 |
| GCEB2 - 2 | 2 | 65 | Ø23 - Ø45 | 25 | Ø12 - Ø17 | 65 | 30 |
| GCEB4 - 1 | 4 | 60 | Ø24 - Ø40 | 20 | Ø10 - Ø14 | 50 | 30 |
| GCEB4 - 2 | 4 | 70 | Ø32 - Ø50 | 25 | Ø12 - Ø17 | 65 | 30 |
| Technical Specification | ||
|---|---|---|
| Properties | Test Methods | Typical Value |
| Colour | Visual | Black |
| 300% Modulus | ASTM D-412 | 3.3 MPa |
| Ultimate Tensile | ASTM D-412 | 9.6 MPa |
| Ultimate Elongation | ASTM D-412 | 750% |
| Die C Tear | ASTM D-624C | 26.3 KN/m |
| Fungus Resistance | ASTM G-21 | 28 Days exposure no growth |
| Moisture Absorption 7 days @ 90°C H2O | Internal Method | Wt. Gain 1.8% |
| Dielectric Strength | ASTM D149 | 14.3 kV/mm |
