Cold Shrink End Cap

Cold Shrink End Cap

Cold Shrink End Cap is used to seal the ends of all types of Cables & protect from ingress of water / moisture. The caps are manufactured from high quality EPDM Rubber compatible with most commonly used Cable Jackets i.e. XLPE, PVC, PILC or Rubber Sheathed Cable.

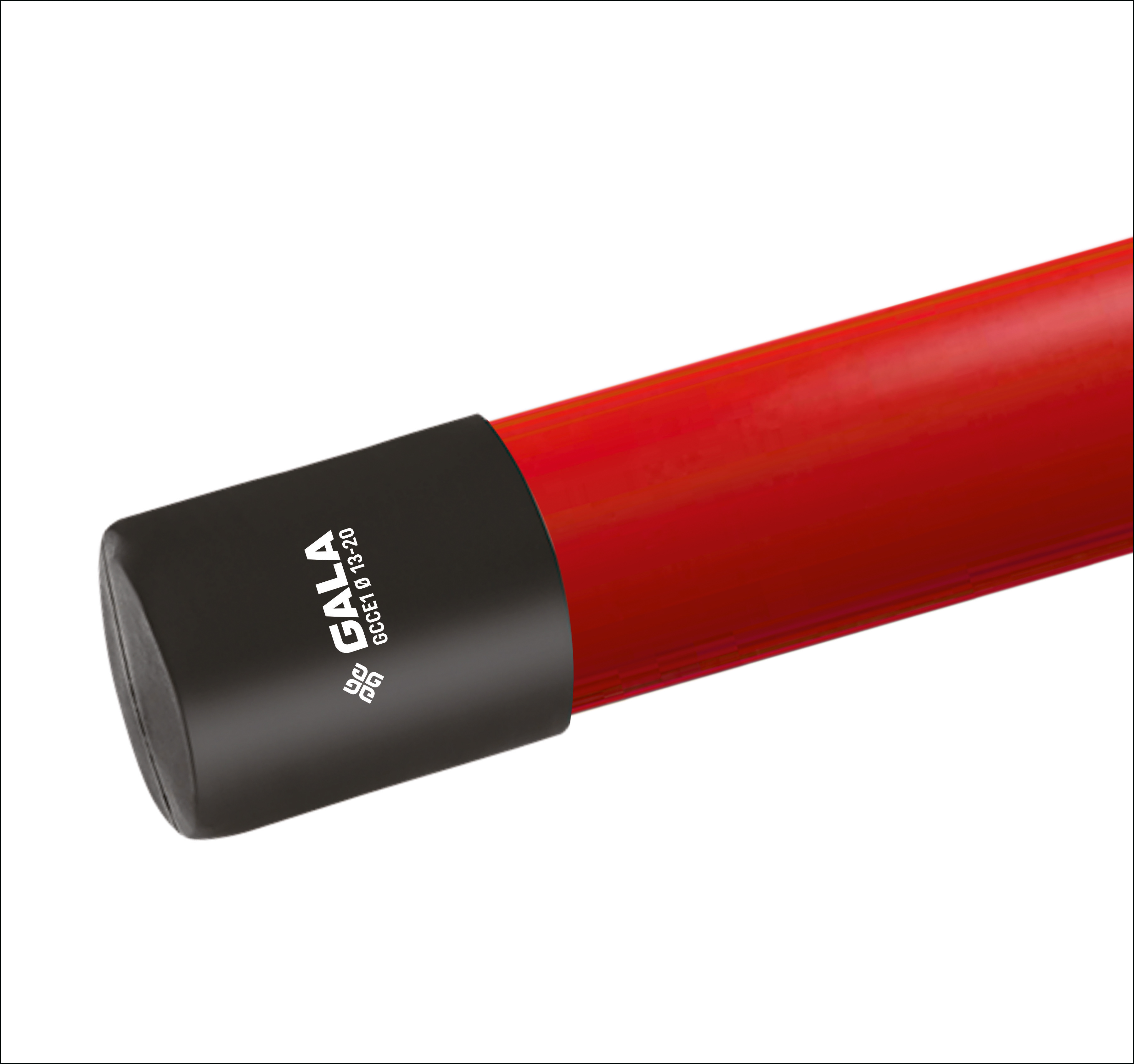

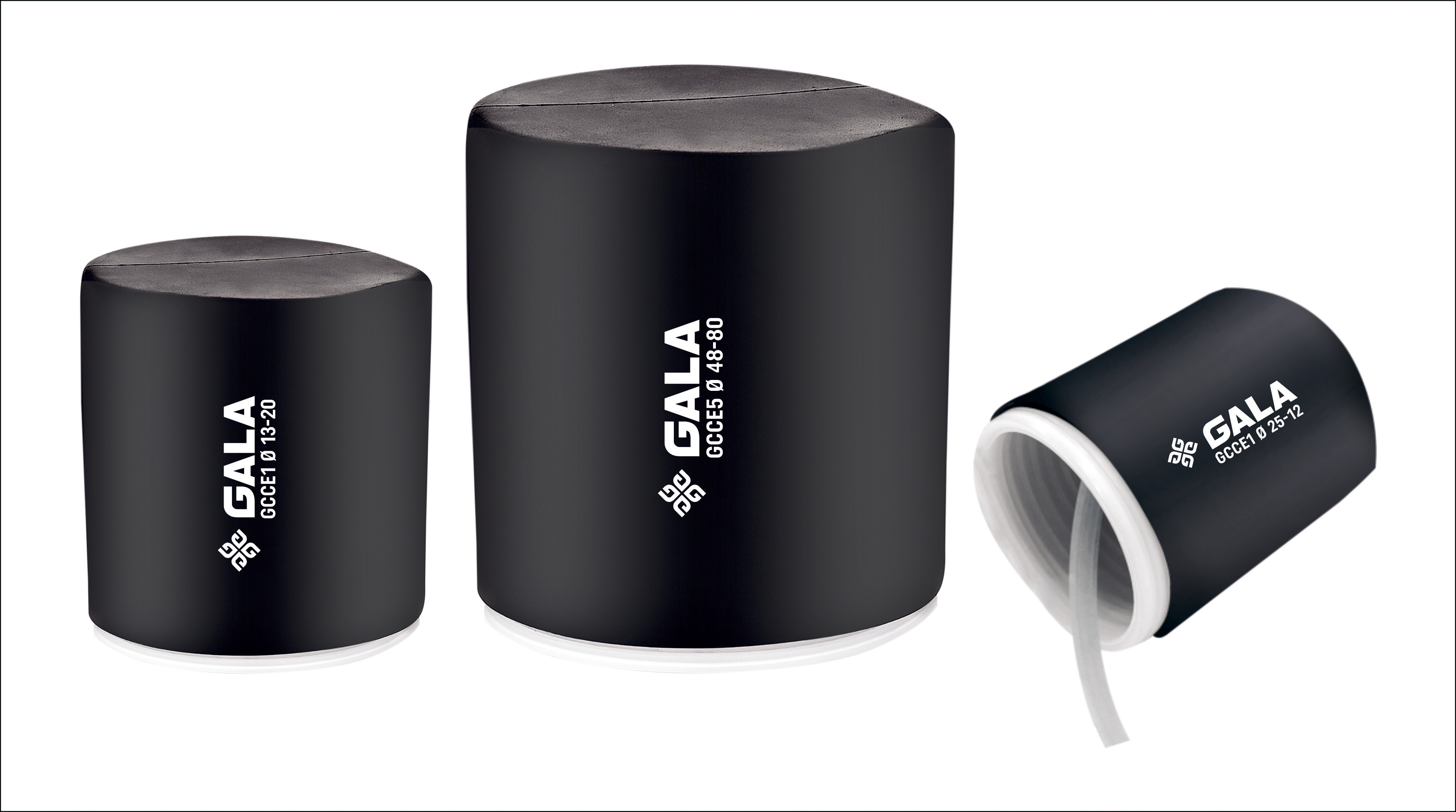

Gala Cold Shrink End Cap are close ended, tubular rubber end cap that are factory expanded and loaded onto a removable core. When positioned over the end of a cable or other cylindrical object, the core is removed to provide a reliable environmental seal. Different end caps are available to accommodate a wide range of sizes.

Features & Benefits:

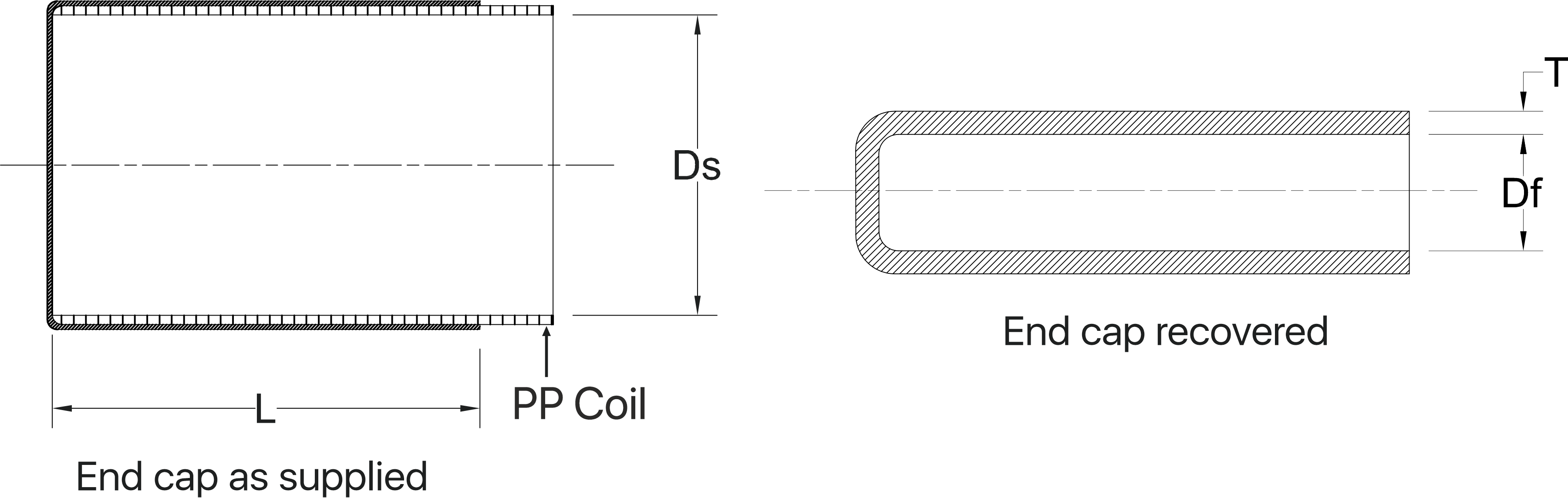

All dimesions are in mm

Selection Chart
Code No.	Ds (min.)	Df (max.)	Lf (min.)	Tf (min.)	Application Range
GCCE - 01	25	12	60	3.3	13 - 20
GCCE - 02	35	16	75	3.4	17 - 30
GCCE - 03	45	22	80	3.4	23 - 38
GCCE - 04	55	22	80	3.4	23 - 48
GCCE - 05	90	45	100	3.4	46 - 80

Technical Specification
Properties	Test Methods	Typical Value
Colour	Visual	Black
300% Modulus	ASTM D-412	3.3 MPa
Ultimate Tensile	ASTM D-412	9.6 MPa
Ultimate Elongation	ASTM D-412	750%
Die C Tear	ASTM D-624C	26.3 KN/m
Fungus Resistance	ASTM G-21	28 Days exposure no growth
Moisture Absorption 7 days @ 90°C H2O	Internal Method	Wt. Gain 1.8%
