Heat Shrinkable Vented Thin Wall Tube

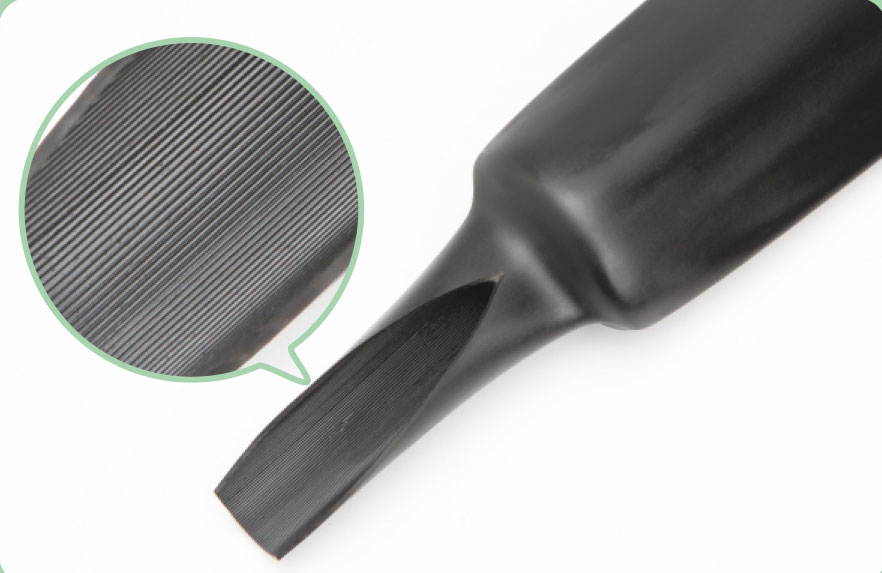

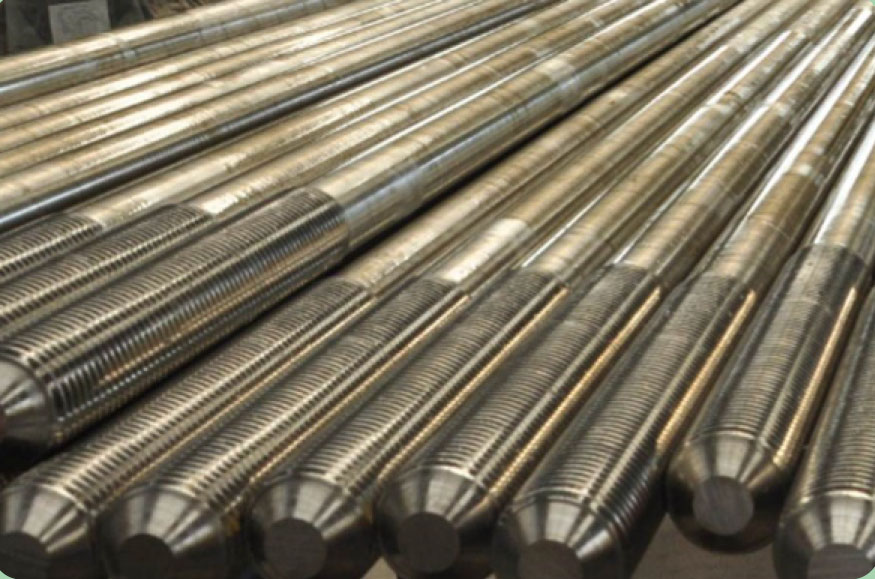

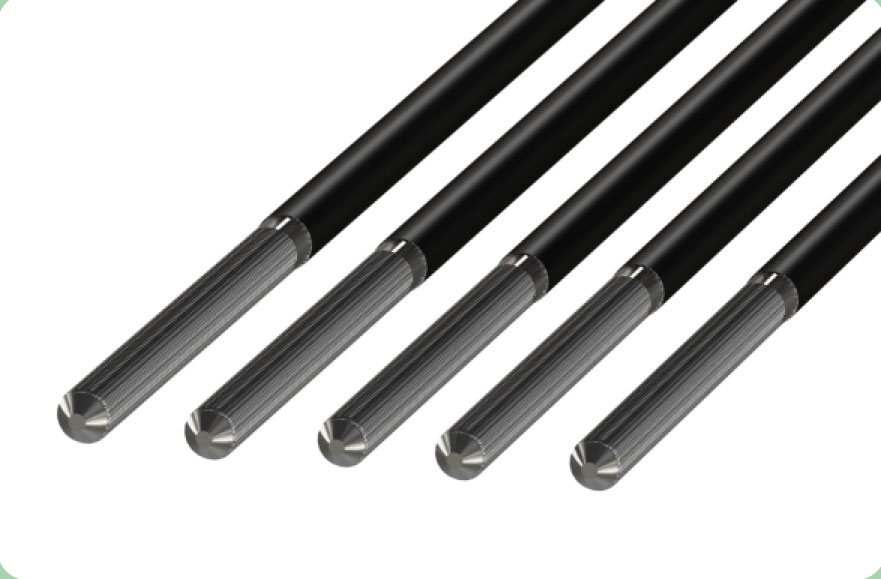

Heat shrinkable Vented Thin Wall tube is designed to protect Wind Power Anchor Bolts, Automotive Parts, U Bolts, etc. against corrosion. The tubes are manufactured from high quality cross-linked polyolefin material. The special Air Vent / Air Groove design provided inside the tube helps to achieve wrinkle free finish on bend areas without the help of Grease or any other lubricant.
Features & Benefits:
| Technical Specification | ||
|---|---|---|
| PROPERTIES | VALUE | STANDARD |
| Physical | ||
| Tensile Strength | 10 N/mm2 (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 300 % (min) | ASTM D638 |
| Water Absorption | 0.15 % (max.) | ASTM D570 |
| Specific Gravity | 1.4 | ASTM D792 |
| Longitudinal Change | -10% (max.) | ASTM D638 |
| Thermal | ||
| Operating Temperature | -40 to +125° C | IEC 216 |
| Heat Shock (250° C for 4 hrs.) | No dripping, cracking or flowing | |
| Low Temperature Flexibility(-55° C for 4 hrs.) | No Cracking | ASTM D2671 |
| Chemical | ||
| Copper Corrosion | Good | ASTM D2671B |
| Chemical Resistance | Good | ASTM D2671 |
| Electrical | ||
| Dielectric Strength | >15 kV/mm. | ASTM D2671 |
| Di-electric Constant | 3.0 (max.) | ASTM D150 |
| Volume Resistivity | 1 x 1014 Ohm.cm (min) | ASTM D257 |

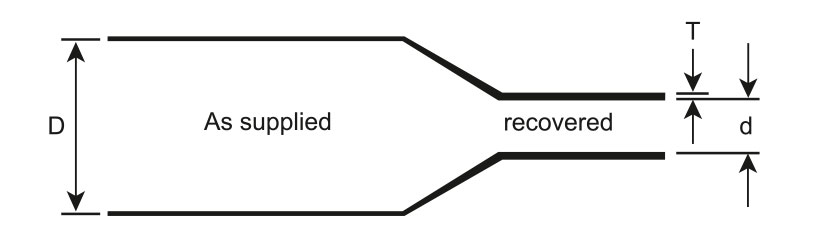

| Selection Chart | |||||
|---|---|---|---|---|---|
| Part | Supplied | Recovered | Recovered Wall | Spools | Cut Lengths |
| Number / Size | I.D. (mm) | I.D. (mm) | Thickness (mm) | Mtr./Spool | 1.2Mtr./Box |
| GLC-SV 20/10 | 20.0 | 10 | 0.78 | 100 | 65 |
| GLC-SV 25/12.5 | 25.0 | 12.5 | 0.78 | 50 | 40 |
| GLC-SV 30/15 | 30.0 | 15.0 | 0.87 | 50 | 30 |
| GLC-SV 40/20 | 40.0 | 20.0 | 0.97 | 50 | 20 |
| GLC-SV 45/25 | 45.0 | 25.0 | 0.97 | 50 | 20 |
| GLC-SV 50/25 | 50.0 | 25.0 | 0.97 | 25 | 15 |
| GLC-SV 60/30 | 60.0 | 30.0 | 0.96 | 25 | 10 |
| GLC-SV 70/35 | 70.0 | 35.0 | 1.10 | 25 | 10 |
