GDW: Dual Wall Tubing
GDW is dual wall tubing manufactured by co-extrusion of polyolefin and hot melt adhesive. Designed to provide both insulation and sealing for protected articles.
APPLICATIONS :
- Provides permanent waterproof barrier & environmental seal for electrical components such as wire splices & harness in automobile & communication industry.
- Used as an alternative to moulded parts and cable breakouts
- High shrink ratio enables insulation of cables with connectors of various sizes-Suitable for use in telecommunication, industrial equipment, automotive and avionics.
GENERAL PRODUCT PROPERTIES :
- Shrink ratio 3:1 and 4:1
- Operating temperature ranges from -550C to +1250C
- Resistance to weathering and UV rays
- Chemical, copper corrosion and fungus resistance
- Dielectric strength of 15kV/mm.
- Meets RoHS Compliance
- Meets IP 68 (Ingress Protection)
SPECIFICATIONS :
IEC, ASTM, Ul224 AND MIL-SPEC
SELECTION CHART - 3:1
All dimensions are in mm
| Part | Internal Diameter (mm) | Recovered Thickness | Recovered Adhesive | Standard | |
|---|---|---|---|---|---|
| Number / Size | Supplied | Recovered | (Incl. Adhesive) (mm) | Thickness (mm) | Package |
| GDW 3/1 | 3.0 mm | 1.0 mm | 0.9 mm | 0.35 mm. | 200m/spool |
| GDW 6/2 | 6.0 mm | 2.0 mm | 1.1 mm | 0.4 mm. | 50m/spool |
| GDW 9/3 | 9.0 mm | 3.0 mm | 1.3 mm | 0.5 mm. | 30m/spool |
| GDW 12/4 | 12.0 mm | 4.0 mm | 1.5 mm | 0.6 mm. | 30m/spool |
| GDW 18/6 | 18.0 mm | 6.0 mm | 1.9 mm | 0.7 mm. | 30m/spool |
| GDW 24/8 | 24.0 mm | 8.0 mm | 2.2 mm | 0.8 mm. | 25m/spool |
| GDW 30/10 | 30.0 mm | 10.0 mm | 2.3 mm | 0.9 mm. | 25m/spool |
| GDW 39/13 | 39.0 mm | 13.0 mm | 2.4 mm | 0.9 mm. | 25m/spool |
| GDW 50/17 | 50.0 mm | 17.0 mm | 2.4 mm | 0.9 mm. | 25m/spool |
SELECTION CHART - 4:1
All dimensions are in mm
| Part | Internal Diameter (mm) | Recovered Thickness | Recovered Adhesive | Standard | |
|---|---|---|---|---|---|
| Number / Size | Supplied | Recovered | (Incl. Adhesive) (mm) | Thickness (mm) | Package |
| GDW 8/2 | 8.0 mm | 2.0 mm | 1.2 mm | 0.4 mm. | 50m/spool |
| GDW 12/3 | 12.0 mm | 3.0 mm | 1.5 mm | 0.6 mm. | 30m/spool |
| GDW 16/4 | 16.0 mm | 4.0 mm | 1.8 mm | 0.6 mm. | 30m/spool |
TECHNICAL SPECIFICATION
- PROPERTIES
- VALUE
- STANDARD
- Physical
- Tensile Strength
- 9 N/mm2 (Mpa) (Min.)
- ASTM D638
- Ultimate Elongation
- 300% (min)
- ASTM D638
- Water Absorption
- 0.15% (Max.)
- ASTM D570
- Specific Gravity
- 1.4
- ASTM D792
- Longitudinal Change
- -10% (Max.)
- ASTM D638
- Thermal
- Operating Temp. (Outer Wall)
- -55oC to + 125oC
- IEC216
- Heat Shock (250 oC for 4 hrs.)
- No dripping, cracking or flowing (Outer Wall)
- Flammability
- Pass
- ASTM D2671
- Chemical
- Fungus Resistance
- Inert
- MIL-1-7444
- Copper Corrosion
- Good
- ASTM D2671B
- Chemical Resistance
- Good
- ASTM D2671
- Electrical
- Dielectric Strength
- >15kV / mm
- ASTM D2671
- Dielectric Constant
- 3.0 (Max.)
- ASTM-D-150
- Volume Resistivity
- 1 x 1013 Ohm.cm (Min)
- ASTM D257

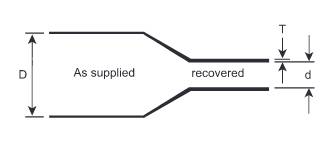

D: Dia. as Supplied, d: Dia. as Free Recovered, T: Free Recovered Wall Thickness
