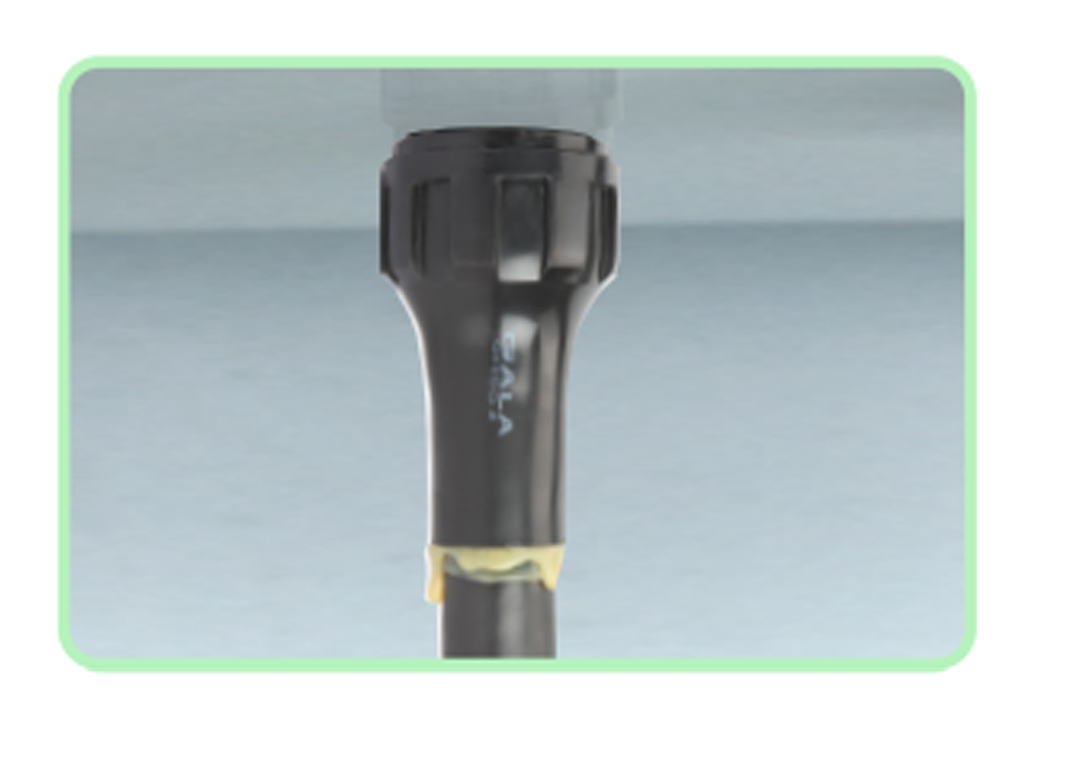

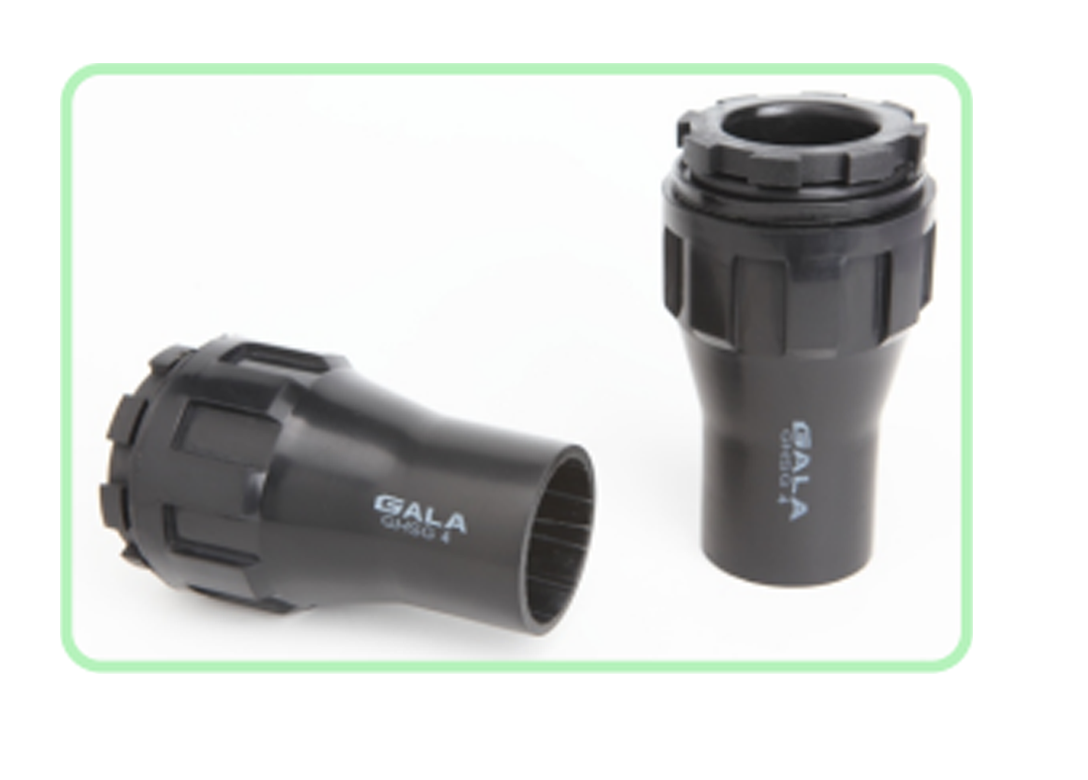

Selection Chart

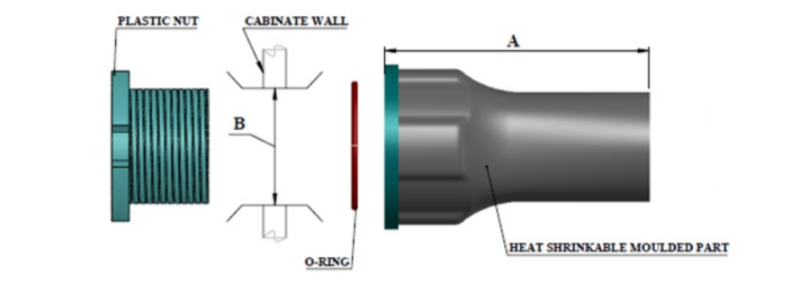

Gala Code	A (mm)	B (mm)	Supplied ID (mm) (Min.)	Recovered ID (mm) (Max.)	Cable Diameter Range (mm)
GHSG-1	70	25	13	4.3	5 - 10
GHSG-2	70	25	19	5.5	6 - 17
GHSG-3	95	35	29	12.5	14 - 25
GHSG-4	116	51	39	19	20 - 37
GHSG-4L*	116	51	39	19	20 - 37
GHSG-4X	120	89	70	21.0	22 - 65
GHSG-5	178	89	70	35.5	37 - 67

Selection Chart - Multi Leg
Product Code	No. of Core	D		d		L		l		Tb	Tc
		Ds	Df	ds	df	Ls	Lf	Is	If	f	f
		min	max	min	max	min	max	min	max	±10%	±10%
GHSG1-2-0308	2	28	8	12	3	70	85	15	20	2.2	2.0
GHSG1-2-0410	2	32	10	14	4	67	85	15	20	2.2	2.0
GHSG3-2-0410A	2	42	11	14	4	80	107	25	42	2.2	2
GHSG4-2-0720	2	60	20	24	7	95	120	25	34	3	2.5
GHSG3-3-0413	3	36	14	15	4	80	100	15	21	2.2	2.0
GHSG4-3-0820	3	60	20	25	8	160	184	45	60	3.3	2.7
GHSG5-3-1330	3	80	30	36	13	185	215	60	75	3.6	3.3
GHSG1-4-0209	4	28	9	9	2.5	90	115	15	20	2.2	1.7
GHSG1-4-0312S	4	30	12	10	3	80	100	15	25	2.4	1.7
GHSG4-4-0312	4	30	12	10	3	80	100	15	25	2.4	1.7
GHSG3-4-0415	4	41	16	14	4	75	100	15	23	2.4	1.7
GHSG4-4-0821	4	57	26	20	7	140	170	32	48	3.5	2.5
GHSG5-4-1334	4	90	42	35	13	170	210	35	52	3.7	2.6
GHSG4-5-0415A	5	57	17	15	4	80	110	21	33	3.2	2.6
GHSG5-5-0832	5	80	32	26	8	155	190	55	65	3.3	2.8

Selection Chart - Right Angle
Product Code	B	Supplied ID	Recovered ID	P	HW	JW	X
	(mm)	(mm) (min.)	(mm) (max.)	b (±10%)	b (±20%)	b (±20%)	b (±20%)
GCES1-GHRB/LR-1026	25	30	10	52	3	1	25
GCES3-GHRB/LR-1026	35	40	10	52	3	1	25
