- Excellent Strain relief
- Provides Cable Entry Sealing.
- Hot melt adhesive for complete environmental protection, and insulation, according to IP 68 (Ingress Protection).
- Excellent resistance to weathering, UV rays, Chemical and Solvents.
- Custom dimensions, thickness, length & colours available on request.

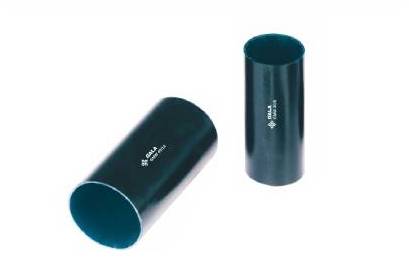

Heat Shrink Shroud

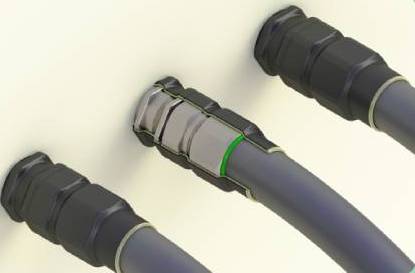

Gala Heat Shrink Shrouds (GHSS) provides a watertight and fume-tight seal where cables enters inside the Glands. The Heat Shrinkable Shrouds are internally coated with hot melt adhesive for complete environmental protection from Moisture, Dust and Water, according to IP 68 (Ingress Protection). These shrouds are manufactured from high quality cross-linked polyolefin material.
Features & Benefits:
| Technical Specification | ||
|---|---|---|
| PROPERTIES | VALUE | STANDARD |
| Physical | ||
| Tensile Strength | 12 N/mm2 (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 350 % (min.) | ASTM D638 |
| Density | 1.0± 0.2 gm/cm3 | ASTM D792 |
| Longitudinal Change | -10% (max.) | ASTM D2671 |
| Hardness | 45 ±10 Shore D | ASTM D2240 |
| Water absorption | 0.5 % (max.) | ASTM D570 |
| Thermal | ||
| Accelerated ageing | (150° C for 168 hrs.) | ASTM D2671 |
| Tensile Strength | 12 N/mm2 (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 300 % (min.) | ASTM D638 |
| Low Temperature Flexibility(-40° C for 4 hrs.) | No Cracking | ASTM D2671 |
| Heat Shock (250° C for 30 min.) | No cracking or flowing | ESI 09-11 |
| Shrink Temperature | 125° C | IEC 216 |
| Continuous Temperature Limit | -40 to +110° C | IEC 216 |
| Electrical | ||
| Di-electric Strength(2mm Wall) | 12 kV/mm.(min) | ASTM D149 |
| Volume Resistivity | 1 x 1012 Ohm.cm (min) | ASTM D257 |
| Dielectric constant | 5 (max.) | ASTM D150 |
| Weathering: The material from which Medium and Heavy wall tubings are manufactured contains carbon black to protect it from UV light. | ||

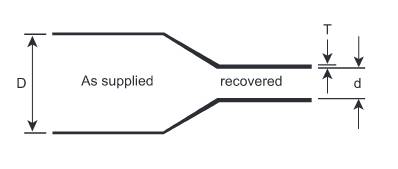

| Selection Chart | |||||
|---|---|---|---|---|---|
| Code | D min. (mm) |
d max. (mm) |
T±10% (mm) |
||
| GMW 22/6 | 22 | 6 | 2.3 | ||
| GMW 30/8 | 30 | 8 | 2.6 | ||
| GMW 33/10 | 33 | 10 | 2.6 | ||
| GMW 40/12 | 40 | 12 | 2.7 | ||
| GMW 50/16 | 50 | 16 | 2.7 | ||
| GMW 65/19 | 65 | 19 | 2.7 | ||
| GMW 70/22 | 75 | 22 | 2.7 | ||
| GMW 95/25 | 95 | 25 | 3.0 | ||
