HEAT SHRINKABLE TUBE FOR WIRE HARNESS
Heat shrinkable Dual wall tubes are designed to provide environmental sealing in automotive splices. Hot melt adhesive prevents entry of moisture between the wires.
Technical Specification
All dimensions are in mm
| Properties | Standard | Typical Value |
|---|---|---|
| Physical: | ||
| Tensile Strength | ASTM-D-638 | 16 N/mm2 (Min.) |
| Elongation | ASTM-D-638 | 300% (Min.) |
| Water Absorption | ASTM-D-570 | 0.15% (Max.) |
| Low Temperature Flexibility | ASTM-D-2671 | -55% (Max.) |
| Specific Gravity | ASTM-D-792 | 1.4 |
| Thermal: | ||
| Operating Temperature | IEC216 | -55°C to +125°C |
| Heat Shock (2500C for 4 hrs) | - | No dripping, cracking or flowing |
| Chemical: | ||
| Copper Corrosion | ASTM-D-2671-B | Good |
| Chemical Resistance | ASTM-D-2671 | Good |
| Electrical: | ||
| Dielectric Strength | ASTM-D-2671 | >20kv / mm |
| Dielectric Constant | ASTM-D-150 | 3.0 (Max.) |
| Volume Resistance | ASTM-D-257 | 10314 Ohm cm (Min.) |
APPLICATIONS:

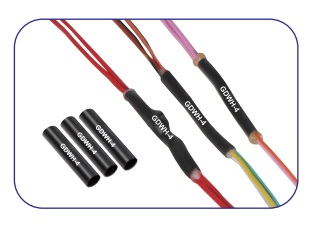

- The tubing is inserted over the splice area and on heating the tube starts shrinking and the adhesive melts and squeezed around where the wires are crimped or welded connectors.
- Light duty wire harnessing for electrical and electronic applications.

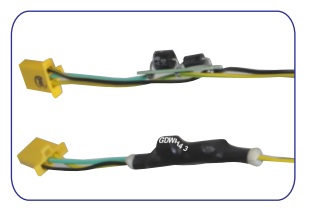

- Provides electrical insulation and protection for in-line components.
- Used as strain relief for electrical wire connection.
- Good flexibility and provides mechanical protection.
- Flame retardant tubes lowers the risk of electrical fires.
GENERAL PROPERTIES OF PRODUCT:
- 4:1 Shrink ratio
- Resistance to chemical, copper corrosion and fungus.
- UV stabilized.
- Standard Colors: Black
SELECTION CHART
All dimensions are in mm
| Part No/Size | D (min) | d (AL) | d (J) (max) | Recovered Wall Thickness (min) | Length (L) mm (min) | |
|---|---|---|---|---|---|---|
| GDWH-1 | 5.75 | 1.25 | 2.65 | 0.60 | 0.60 | 50 |
| GDWH-2 | 7.50 | 1.65 | 3.45 | 0.70 | 1.40 | 50 |
| GDWH-3 | 11.00 | 2.40 | 4.65 | 0.80 | 1.80 | 65 |
| GDWH-4 | 14.00 | 3.00 | 5.90 | 0.90 | 2.15 | 65 |
| GDWH-5 | 18.30 | 4.35 | 7.40 | 0.90 | 2.20 | 75 |
D, d- Dia as Supplied; A - Adhesive Liner; W,J - Jacket; Tf - Free Recovered Thickness, L - Length as Supplied
