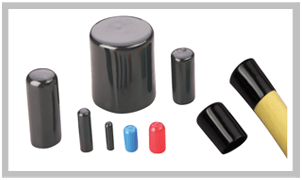

PVC Caps
As the major producer of PVC caps in the world, Galathermo has the widest line of caps, plugs, flange covers, and products available. Of course, this broad line of products evolved due to the individual compensation that plugs have over nearly all hard plastic closures.
- Vin cap is made from specially formulated Poly Vinyl Chloride material.
- Push-on type application.
- Ensures perfect protection to cable ends from weathering, moisture and contamination.
- Quick and easy installation without any tools. No skill is required.
- Extremely economical and cost effective compared to Heat Shrink End Caps.
- Caps of varying lengths & thickness can be made with no tooling charge.
- Will not Crack or Split like Low Density Polyethylene.
SELECTION CHART
All dimensions are in mm
- d
- l
- d
- l
- d
- l
- d
- l
- 4
- 25
- 30
- 40
- 62
- 50
- 140
- 63
- 6
- 25
- 31
- 40
- 64
- 50
- 152
- 63
- 7
- 35
- 32
- 40
- 65
- 50
- 168
- 63
- 8
- 35
- 34
- 40
- 68
- 50
- 191
- 63
- 9
- 40
- 37
- 40
- 70
- 50
- 203
- 63
- 10
- 40
- 38
- 40
- 73
- 50
- 254
- 63
- 12
- 40
- 40
- 40
- 75
- 50
- 305
- 63
- 13
- 40
- 41
- 40
- 77
- 50
- 356
- 63
- 15
- 40
- 42
- 40
- 80
- 60
- 406
- 63
- 16
- 40
- 44
- 40
- 83
- 60
- 457
- 63
- 17
- 40
- 45
- 40
- 85
- 60
- 508
- 63
- 18
- 40
- 47
- 40
- 88
- 60
- 610
- 63
- 19
- 40
- 48
- 40
- 90
- 60
- 660
- 63
- 20
- 40
- 50
- 50
- 95
- 60
- 711
- 63
- 22
- 40
- 51
- 50
- 100
- 60
- 762
- 63
- 24
- 40
- 52
- 50
- 105
- 60
- 813
- 63
- 25
- 40
- 53
- 50
- 110
- 60
- 914
- 63
- 26
- 40
- 55
- 50
- 115
- 60
- 27
- 40
- 57
- 50
- 118
- 60
- 28
- 40
- 60
- 50
- 127
- 63
TECHNICAL SPECIFICATION
| Test Description | Recorded Value | TEST METHOD |
|---|---|---|
| Dielectric Strength | 12KV/mm.(min.) | ASTM D149 |
| Tensile Strength | 12N/mm2 (min.) | ASTM D638 |
| Elongation | 350% (min.) | ASTM D638 |
| Density | 1.23gm/cm3 | ASTM D792 |
| Hardness | 65 ± 5 shore A | ASTM D2240 |
| Continuous Operating | -20°C to 115°C | IEC 216 |
| Flammability | Pass | UL 94-VO |
