Heat Shrink Moulded Sealing CapsInsulcap

Cable End Caps - Cable End Sealing Cap - INSULCAP
  • Cable End Caps
  • Heat Shrink End Caps

Insulcap is used seal the ends of all types of Cables & protect from ingress of water / moisture. The caps are manufactured from high quality cross linked polyolefin material. Compatible with most commonly used Cable Jackets i.e. XLPE, PVC, PILC OR Rubber Sheathed Cable.
Hot Melt adhesive lining provides permanent seal on irregular cable sheaths.
Excellent resistance to weathering, moisture, contamination and adverse environmental conditions, according to IP 68 (Ingress Protection.)

  • Temper Proof Application : Custom Logo / Print with special non-removable Ink marks permanent seal in End Cap after shrinking, thereby avoiding claims is case of Pilferage of Cable length.
  • Valved End caps (v) available for pressurized application for Telecom cables.
  • Special Relief valved End Caps (RV) available for degassing application in High Voltage Power cables.
  • Live End Cap Kit available for sealing Live Cables.
  • Conductive End Caps are available with Conductive Mastic.
Insulcap, Heat Shrink End Caps

Technical Qualification Report : QR 1011

SELECTION CHART

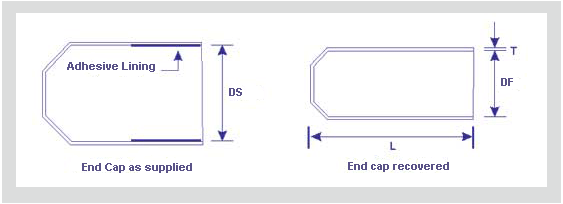

All dimensions are in mm

  • CODE NO.
  • Ds (Min.)
  • Df (Max.)
  • LS (Min.)
  • Tf(± 10%)
  • CABLE RANGE
  • GEC 001S
  • 6
  • 2
  • 25
  • 2.0
  • 2.5-4
  • GEC 001 SA
  • 8
  • 2
  • 25
  • 2.0
  • 2.5-6
  • GEC 001
  • 12
  • 4
  • 40
  • 2.3
  • 5-8
  • GEC 001 L
  • 12
  • 4
  • 58
  • 2.3
  • 5-8
  • GEC 001 A
  • 14
  • 4
  • 40
  • 2.3
  • 5-11
  • GEC 001A L*
  • 14
  • 4
  • 58
  • 2.3
  • 5-11
  • GEC 101
  • 20
  • 7.5
  • 55
  • 2.3
  • 10-16
  • GEC 101 L
  • 20
  • 8
  • 75
  • 2.5
  • 10-16
  • GEC 101 A
  • 25
  • 8
  • 55
  • 2.3
  • 10-20
  • GEC 101 A L*
  • 25
  • 8
  • 75
  • 2.5
  • 10-20
  • GEC 102
  • 30
  • 11
  • 75
  • 2.5
  • 13-26
  • GEC 102 L*
  • 30
  • 11
  • 110
  • 2.5
  • 13-26
  • GEC 102 A
  • 35
  • 11
  • 75
  • 2.5
  • 13-30
  • GEC 102 A L*
  • 35
  • 11
  • 115
  • 2.5
  • 13-30
  • GEC 201
  • 40
  • 15
  • 90
  • 3.3
  • 17-35
  • GEC 201 L*
  • 40
  • 15
  • 120
  • 3.3
  • 17-35
  • GEC 201 A*
  • 45
  • 15
  • 90
  • 3.3
  • 17-40
  • GEC 201 AL*
  • 45
  • 15
  • 120
  • 3.3
  • 17-40
  • GEC 301
  • 55
  • 25
  • 125
  • 3.5
  • 30-47
  • GEC 301 L*
  • 55
  • 25
  • 170
  • 3.5
  • 30-47
  • GEC 301 A*
  • 63
  • 25
  • 125
  • 3.5
  • 30-55
  • GEC 301 AL
  • 63
  • 25
  • 170
  • 3.5
  • 30-55
  • GEC 401
  • 75
  • 35
  • 140
  • 4.0
  • 42-68
  • GEC 401 L
  • 75
  • 35
  • 180
  • 4.0
  • 42-68
  • GEC 401 A*
  • 85
  • 36
  • 140
  • 4.0
  • 42-78
  • GEC 401 AL*
  • 85
  • 35
  • 180
  • 4.0
  • 42-78
  • GEC 501
  • 100
  • 45
  • 160
  • 4.0
  • 55-90
  • GEC 501 L
  • 100
  • 45
  • 200
  • 4.0
  • 55-90
  • GEC 501 A*
  • 120
  • 45
  • 160
  • 4.0
  • 55-110
  • GEC 501 AL
  • 120
  • 45
  • 200
  • 4.0
  • 55-110
  • GEC 601
  • 130
  • 60
  • 160
  • 4.6
  • 75-120
  • GEC 601 L
  • 130
  • 65
  • 300
  • 4.6
  • 75-120
  • GEC 701
  • 158
  • 60
  • 165
  • 4.6
  • 75-145
  • GEC 701 N
  • 158
  • 65
  • 165
  • 5.5
  • 75-145
  • GEC 701 L
  • 160
  • 65
  • 300
  • 4.5
  • 75-120
  • GEC 701 AL
  • 170
  • 65
  • 300
  • 4.5
  • 75-145
  • GEC 701 XXL
  • 160
  • 75
  • 585
  • 3.8
  • 85-160
  • GEC 801 S*
  • 190
  • 125
  • 220
  • 4.0
  • 140-165
  • GEC 801*
  • 230
  • 125
  • 220
  • 4.0
  • 140-200
  • GEC 801 A
  • 280
  • 125
  • 225
  • 3.8
  • 140-250
  • GEC 801 AL
  • 280
  • 125
  • 550
  • 3.8
  • 140-250
  • GEC 901*
  • 310
  • 120
  • 220
  • 7.0
  • 140-280
  • GEC 1001*
  • 400
  • 204
  • 220
  • 6.0
  • 230-360
  • GEC 1101*
  • 500
  • 204
  • 220
  • 6.0
  • 230-460

D : Internal Diameter ; s : as supplied ; f : after free recovery

TECHNICAL SPECIFICATION
PROPERTIES VALUE STANDARD
Physical
Tensile Strength 12 N/mm2 (MPA)(min.) ASTM D638
Ultimate Elongation 350% (Min.) ASTM D638
Density 1.05 ± 0.2 gm/cm3 ASTM D792
Hardness 45 ± 10 Shore D ASTM D2240
Water Absorption 0.2 % (max.) ASTM D570
Thermal
Accelerated Ageing (120oC for 500 Hrs) ASTM D2671
Tensile Strength 11 N/mm2 (Mpa) (min.) ASTM D 638
Ultimate Elongation 300%(Min.) ASTM D638
Low temperature Flexibility (-40oC for 4 Hrs.) No Cracking ASTM D2671
Heat Shock (250oC for 30 Min.) No Cracking or flowing ESI 09-11
Shrink Temperature 125oC IEC 216
Continuous Temperature Limit -40oC to + 110oC IEC 216
Electrical
Dielectric Strength 12 KV/mm. (Min.) ASTM D149
Volume Resistivity 1 x 1014 Ohm.cm(min.) ASTM D257
Dielectric Constant 5 (Max.) ASTM D150
