Switchgear Insulation Products

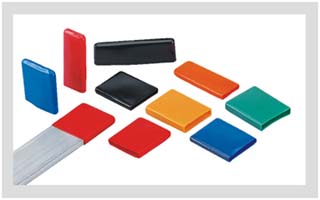

Bus Bar End Caps - BUSCAP
Bus Cap is flexible, re-usable, electrical insulating End Cap, used to cover the end of live Bus Bars. These Bus Cap is flexible, re-usable, electrical insulating End Cap, used to cover the end of live Bus Bars. These End Caps can be installed, removed or replaced in few minutes. Made from Polyvinyl Chloride (PVC) material, it is formulated specially for electrical application at high voltage. can be installed, removed or replaced in few minutes. Made from Polyvinyl Chloride (PVC) material, it is formulated specially for electrical application at high voltage.
STANDARDS :
Tested to ANSI C 37.20.2 Standards for medium voltage switchgear application to 36KV.
-: FEATURES & BENIFITS :-
- Provide significant reduction in air clearances.
- Excellent electrical, mechanical & thermal properties.
- Highly resistant to UV rays and ozone. Good for indoor or outdoor applications.
- Customised design & Colours can be developed in a week.

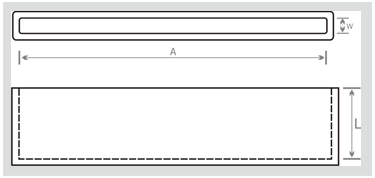

SELECTION CHART
- Gala Code
- MM
- A MM
- W MM
- L MM
- GBC1
- 15 x 5
- 15
- 5
- 20
- GBC2
- 20 x 5
- 20
- 5
- 20
- GBC3
- 25 x 5
- 25
- 5
- 20
- GBC4
- 30 x 10
- 30
- 10
- 30
- GBC5
- 40 x 10
- 40
- 10
- 30
- GBC6
- 50 x 6
- 50
- 6
- 30
- GBC7
- 50 x 10
- 50
- 10
- 30
- GBC8
- 60 x 10
- 60
- 10
- 30
- GBC9
- 65 x 8
- 65
- 8
- 30
- GBC10
- 75 x 6
- 75
- 6
- 50
- GBC11
- 80 x10
- 80
- 10
- 50
- GBC12
- 100 x 6
- 100
- 6
- 50
- GBC13
- 100 x 10
- 100
- 10
- 50
- GBC14
- 100 x 24
- 100
- 24
- 50
- GBC15
- 120 x 10
- 120
- 10
- 50
- GBC16
- 125 x 10
- 125
- 10
- 50
- GBC17
- 150 x 6
- 150
- 6
- 70
- GBC18
- 200 x 12
- 200
- 12
- 70
TECHNICAL SPECIFICATION
- TEST DESCRIPTION
- RECORDED VALUE
- TEST METHOD
- Dielectric Strength
- 12 KV / mm. (min.)
- ASTM D149
- Tensile strength
- 12 N/mm2 (min.)
- ASTM D638
- Elongation
- 350% (min.)
- ASTM D638
- Density
- 1.23 gm/cm3
- ASTM D792
- Hardness
- 65 ± 5 shore A
- ASTM D2240
- Continuous Operating Temp.
- -20°C to 115°C
- IEC 216
- Flammability
- Pass
- UL 94 -V0
