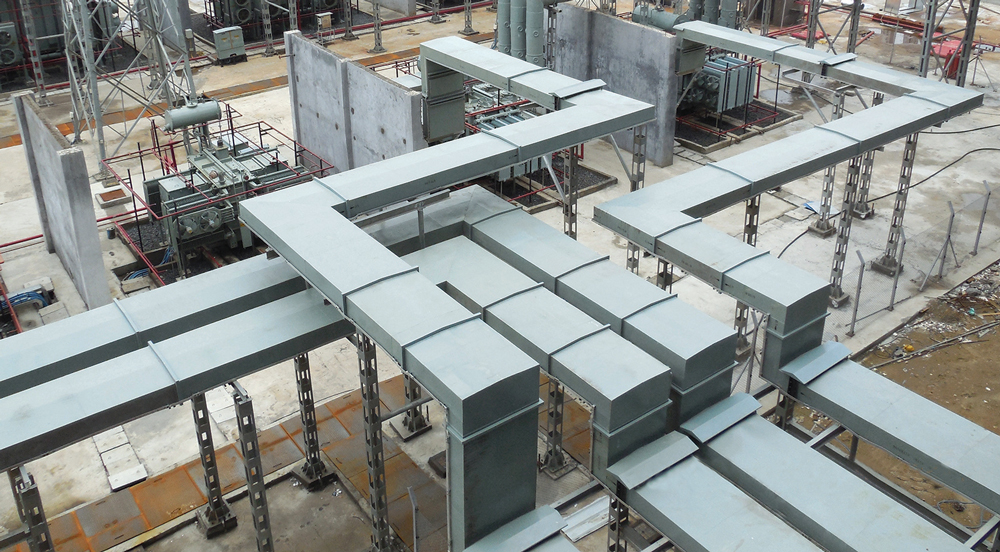

Switchgear/Busduct Industry
Gala specialises in providing the design and manufacturing of Products & Solutions for Switchgear/Busduct Industries. Gala's insulating portfolio is used to reduce Air clearance in Switchgears, thereby providing insulation on busbars and gas vacuum bottles in order to help our customers design more compact and reliable equipment.
Below are the products offered for Switchgear/Busduct Industry

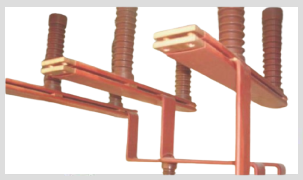

Heat Shrink Busbar Sleeves - for 66kV
Gala's Heat Shrink Busbar Sleeve is heat shrinkable sleeve designed to insulate busbar systems up to 66KV and also to protect against accidental flash-over. It helps to reduces the air clearance.

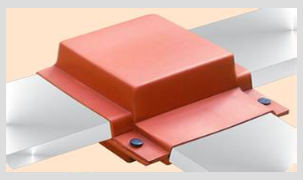

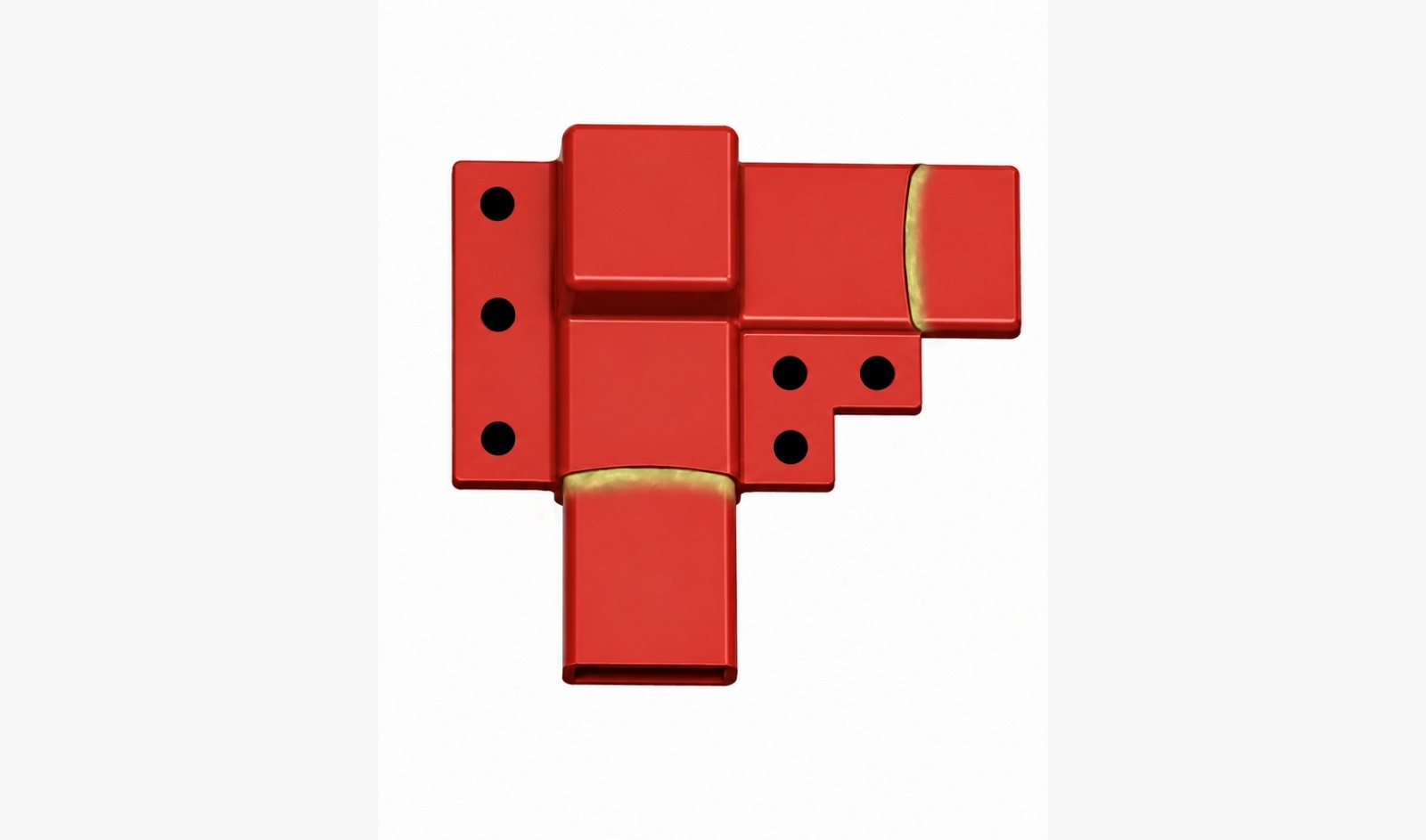

Busbar Insulating Boots/Shrouds - Polyolefin
Gala's Polyolefin Busboot is a flexible electrical insulating boot/shroud for busbar and switchgear connections up to 36KV. These pliable boots can be installed, removed or replaced in few minutes. Made from high-quality Polyolefin material to provide excellent electrical insulation and to withstand higher operating temperature continuously.

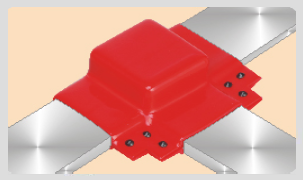

Busbar Insulating Boots/Shrouds - PVC
Gala's PVC Busboot is a flexible electrical insulating boot/shroud for busbar and switchgear connections up to 36KV. kV. These pliable boots can be installed, removed or replaced in few minutes. Made from specially formulated Polyvinyl Chloride (PVC) material to provide excellent electrical insulation and to withstand higher operating temperature continuously.

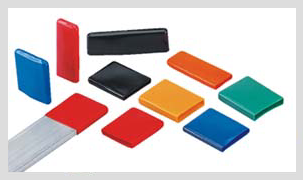

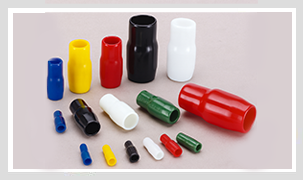

Busbar End Caps
Gala's Busbar End Cap is used to cover the end of live Busbars. It is made from Polyvinyl Chloride (PVC) material, it is formulated specially for electrical application at high voltage.
Heat Shrink Tape
Gala's Heat Shrink Tape is used for Insulation & protection of medium voltage busbar connections, where tubing cannot be used.

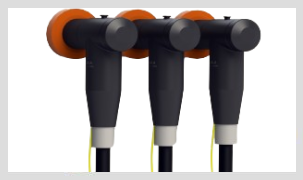

Screened Separable Connectors
Gala's Screened Separable Connectors are designed to connect single and three-core polymeric cables to Medium Voltage Switchgear, Transformers, RMU (Ring Main Units) and other equipment using bushings type “C” specified for 630A up to 36kV. It is made from highly modify EPDM rubber and it is protected by touch-proof outer conductive screened connected to earth.
Heat Shrinkable Cable Joints
Gala is one of the leaders in designing and manufacturing Heat Shrink Joints for the most modern PVC/PILC/XLPE/EPR Low & Medium Voltage Power Cable up to 66kV Class.The design specification and quality of our Heat Shrink Cable accessories have been upheld by the most stringent national/International standards worldwide.
Heat Shrinkable Cable Terminations
Gala offers unsurpassed technical superiority for perfect Termination of most modern PVC/PILC/XLPE/EPR Low & Medium Voltage Power Cable up to 66kV Class. We provide CLASS 1 Terminations to Electrical Industries. Our Cable Terminations are made considerably tamper proof from environmental factors as the entire length between the wire termination point and contact is safely encapsulated with this protective product.

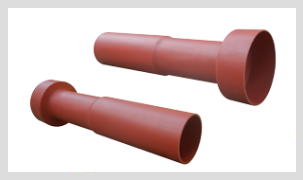

Insulation Boot for Circuit Breaker
Gala's Insulation Boot for Circuit Breaker is electrrical insulation boots, designed to insulate Draw-Out Circuit Breakers in MV/HV Power Plant & Substations
Bushing Boot
Gala's Bushing Boot is used for Insulation & protection of Cable Terminating to Bushing up to 24 KV. It protects against flashovers or surges induced in Switchgear & Transformer boxes.

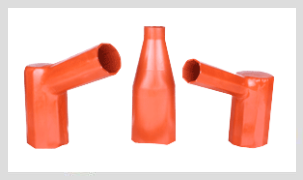

Heat Shrink Right Angle / Straight Boot
Gala's Angleboots are Heat Shrink Right Angle / Straight Boots provide insulation to the bushings in the cable termination box, where the clearance between phase to phase and phase to earth is less then the normal air clearance. These boots provide protection against flashover in the event of high humidity, rodent menace and surge impulse.
 Industry/Cable Terminal Protector(GTPE-500).png)
Cable Terminal Protector(GTPE-500)
Gala's Terminal Protector Kit or Push-on boot is designed for shrouding the exposed live parts of an Indoor Cable Termination and Terminal bushing connection of a electrical equipment like RMUs, Switchgear Panel, Transformers, etc.
