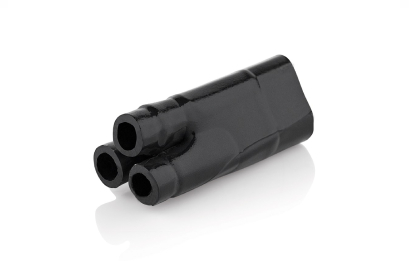

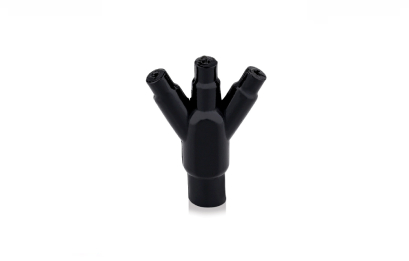

Heat Shrink 3 Way Boot
Heat Shrink Boots are manufactured from high quality cross-linked Polyolefin material conforming to stringent military specifications.
This boot provides an exceptional insulation, strain-relief & long term service reliability in connector joints of cable harness.
All dimesions are in mm

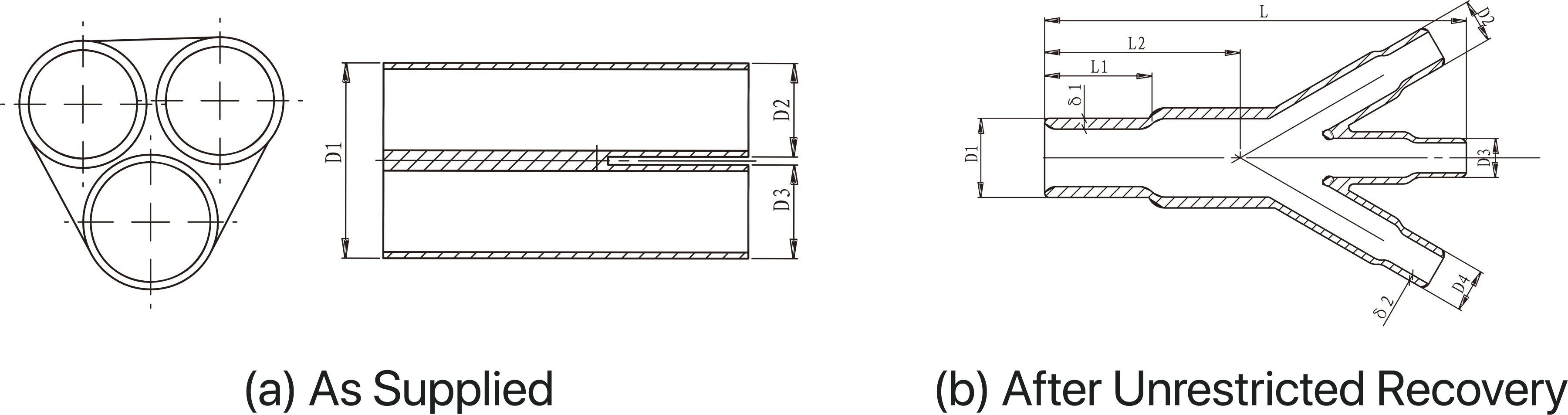

| Selection Chart | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Code | D1 | D2, 3 | L1 ±10% | L2 ±10% | L3 ±10% | T1 ±20% | T2, T3 ±20% | ||
| a (min) | b (max) | a (min) | b (max) | ||||||
| GHS3-N-407 | 14 | 6.6 | 6.6 | 3.6 | 46 | 31 | 15.7 | 2 | 1.5 |
| Technical Specification | ||
|---|---|---|
| Property | Standard Value | Test Standard |
| Oxygen Index | ≥28% | ISO 4589 |
| Dielectric Strength | ≥20kV/mm | IEC 60243 |
| Physical Properties | ||
| Tensile Strength | ≥15MPa | ASTM-D-2671 |
| Elongation at Break | ≥500% | ASTM-D-2671 |
| Hardness (Shore A) | 90±2 | ISO 868 |
| Elongation at break after ageing (130°C, 168h) | ≥400% | ASTM-D-2671 |
| Heat Shock (200°C, 4h) | No dripping, flowing or cracking | UL 224 |
| Low temperature flexibility | -55°C | ISO 974 |
| Solvent Resistance (23°C, 24h) | ||
| Gasoline | ||
| Tensile strength | ≥11Mpa | ASTM-D-2671 |
| Elongation at break | ≥400% | ASTM-D-2671 |
| Diesel Oil | ||
| Tensile Strength | ≥10Mpa | ASTM-D-2671 |
| Elongation at break | ≥350% | ASTM-D-2671 |
| Acid & Alkali | ||
| Tensile Strength | ≥12Mpa | ASTM-D-2671 |
| Elongation at break | ≥400% | ASTM-D-2671 |
