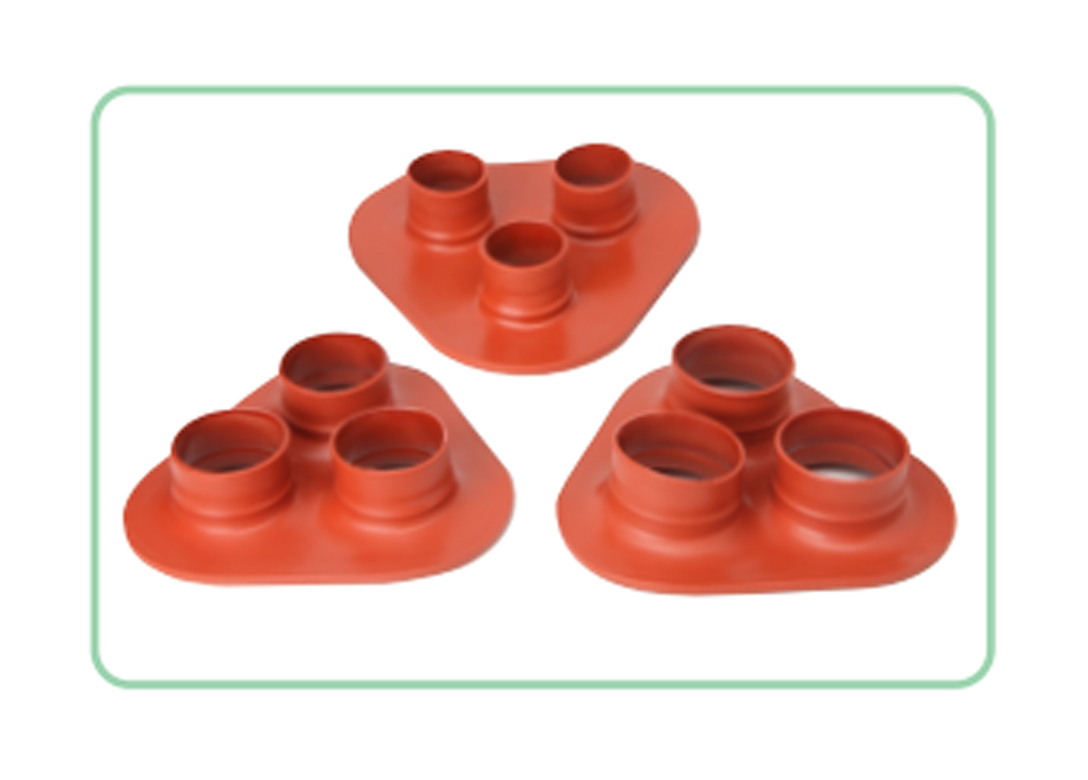

Heat Shrink Rain Shed - Tri-core
Insulshed is used to increase the surface creepage distance of the cores of cable termination without increasing the tail length. They are also used to avoid continuity during rainy season to avoid short circuiting of the electrical network.
The rainsheds are made from high quality cross-linked polyolefin material that offers exceptional non tracking behaviour, insulation and long term service reliability for indoor and outdoor applications. The creepage extension sheds are internally coated with water resistant mastic.
| Technical Specification | ||
|---|---|---|
| PROPERTIES | VALUE | STANDARD |
| Physical | ||
| Tensile Strength | 12 N/mm 2 (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 350 % (min) | ASTM D638 |
| Density | 1.15± 0.2 gm/cm 3 | ASTM D792 |
| Hardness | 45 ±10 Shore D | ASTM D2240 |
| Water absorption | 0.5 % (max.) | ASTM D570 |
| Thermal | ||
| Accelerated ageing | (120 0 C for 500 hrs) | ASTM D2671 |
| Tensile Strength | 11 N/mm 2 (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 300 % (min.) | ASTM D638 |
| Low Temperature Flexibility | No Cracking | ASTM D2671 |
| (-40 0 C for 4 hrs.) | ||
| Heat Shock (250 0 C for 30 min.) | No cracking or flowing | ESI 09-11 |
| Shrink Temperature | 125 0 C | IEC 216 |
| Continuous Temperature Limit | -40 to +100 0 C | IEC 216 |
| Electrical | ||
| Dielectric Strength | 15 KV/mm.(min) | ASTM D149 |
| Volume Resistivity | 1 x 10 14 Ohm.cm (min) | ASTM D257 |
| Dielectric constant | 5 (max.) | ASTM D150 |
| Resistant to track & erosion | No Tracking, erosion or flame failure upto 3.25 KV for 20 min | ASTM D2303 |

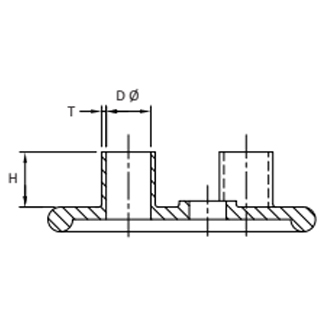

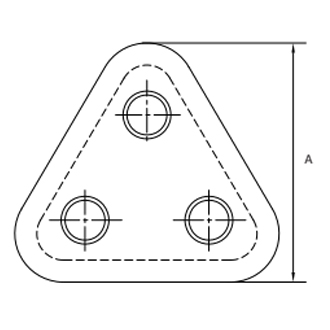

- Gala Code
- A (min.)
- Ds (±3 mm)
- Df (max.)
- Hs (min.)
- Tf (± 10%)
- GRST-1
- 152
- 35
- 16
- 25
- 2.8
- GRST-2
- 152
- 45
- 22
- 25
- 3.0
- GRST-3
- 152
- 50
- 22
- 25
- 3.0
