Heat Shrinkable Moulded Shapes
Cable End Caps - Live End Caps
Insulcap-Live (GLEC) are Heat Shrinkable Caps, used to seal the live cables. The caps are manufactured from high quality cross linked polyolefin material.
Each core is separately sealed using small end caps. Finally a thick wall outer heat shrink cap is applied marked with a live flash symbol.

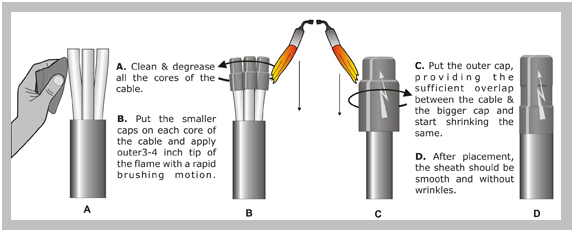

Installation Instructions

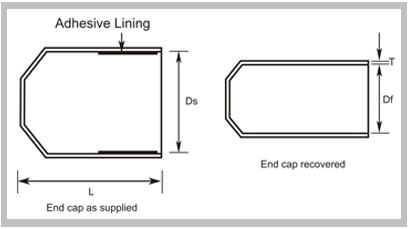

SELECTION CHART
All dimensions are in mm
- Description
- 4 x 1.5-6 mm2
- 4 x 4-35 mm2
- 4 x 50-150 mm2
- 4 x 150-300 mm2
- Outer cap (1 Pc.)
- GLEC 101AL
- GELC 201 L
- GLEC 301 L
- GLEC 401 L
- Ds (min.)
- 25
- 40
- 55
- 75
- Df (max.)
- 8
- 15
- 25
- 35
- Ls (min.)
- 75
- 120
- 170
- 180
- Tf (10%)
- 2.5
- 3.3
- 3.8
- 4.0
- Inner cap (4 Pcs.)
- GLEC 001S
- GLEC 001
- GLEC 101
- GLEC 201
- Ds (min.)
- 6
- 12
- 20
- 40
- Df (max.)
- 2
- 4
- 7.5
- 15
- Ls (min.)
- 25
- 40
- 55
- 90
- Tf (10%)
- 2.0
- 2.3
- 2.3
- 3.3
D : Internal Diameter ; s : as supplied ; f : after free recovery
Technical Qualification Report : QR 1011
TECHNICAL SPECIFICATION
- PROPERTIES
- VALUE
- STANDARD
- Physical
- Tensile Strength
- 12 N/mm2 (MPA)(min.)
- ASTM D638
- Ultimate Elongation
- 350% (Min.)
- ASTM D638
- Water Absorption
- 0.2 % (max.)
- ASTM D570
- Thermal
- Accelerated Ageing
- (120oC for 500 Hrs)
- ASTM D2671
- Tensile Strength
- 11 N/mm2 (Mpa) (min.)
- ASTM D 638
- Ultimate Elongation
- 300%(Min.)
- ASTM D638
- Heat Shock (250oC for 30 Min.)
- No Cracking or flowing
- ESI 09-11
- Continuous Temperature limit
- -40oC to + 110oC
- IEC 216
- Electrical
- Dielectric Strength
- 12 KV/mm. (Min.)
- ASTM D149
- Volume Resistivity
- 1 x 1014 Ohm.cm(min.)
- ASTM D257
- Dielectric Constant
- 5 (Max.)
- ASTM D150
