Switchgear Insulation Products
Termicap
Termi Cap is made from high quality flexible PVC (Polyvinyl Chloride) Material.
- Used for insulating and protecting wire end terminal.
- Available in customs size, shape and colours.
- v Ideal for Insulating & colour coded identification of terminal crimped on to the power cable.
Standards :
Tested to ANSI C 37.20.2 Standards for medium voltage switchgear application to 36kV.

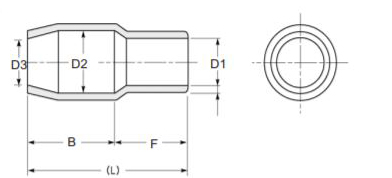

Technical Drawing :
Technical Specification:
- TEST DESCRIPTION
- RECORDED VALUE
- TEST METHOD
- Dielectric Strength
- 16 kV / mm. (min.)
- ASTM D149
- Tensile Strength
- 12 N/mm2 (min.)
- ASTM D638
- Elongation
- 350% (min.)
- ASTM D638
- Density
- 1.23 gm/cm3
- ASTM D792
- Hardness
- 65 ± 5 Shore A
- ASTM D2240
- Continuous Operating Temp
- -20℃ to 115℃
- IEC 216
Selection Chart
- TYPE mm
- D1 mm
- D2 mm
- D3 mm
- L mm
- F
- TCV 12
- 3.2
- 3.5
- 3
- 15
- 8
- TCV 21
- 3.5
- 4.5
- 3.8
- 18
- 10
- TCV 50
- 4.5
- 5.5
- 4.5
- 21
- 10
- TCV 53
- 5
- 6
- 5
- 25
- 10
- TCV 60
- 8
- 10
- 8
- 27
- 13
- TCV 221
- 9.5
- 12
- 8
- 30
- 16
- TCV 381
- 12
- 14
- 10
- 35
- 18
- TCV 601
- 14
- 16.5
- 14
- 42
- 23
- TCV 100
- 18
- 22
- 16
- 54
- 26
- TCV 501
- 22
- 24
- 22
- 67
- 33
- TCV 2501
- 26
- 37
- 26
- 79
- 38
- TCV 3251
- 30
- 37.5
- 30
- 78
- 38
