Cable Terminations - GXO/E - 1112 - Series Heat Shrinkable Terminations Suitable for 3 Core XLPE/EPR Insulated Cables For 12kV
Descriptions : GLT - 1100 - Series Heat Shrinkable terminations kits designed for 1, 2, 3, 3?, 4, Core extruded Solid dielectric (XLPE / PVC) & paper insulated cable (Armoured / Un-Armoured) of 1.1kV & 3.3 kV rating.

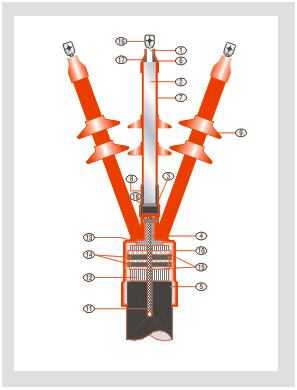

BILL OF MATERIAL STD. PACKING KIT (
+
)
- Cable Components
- Kit Components
- Installation aids & Accessories (Part of std. kits)
- Cable Components
- No
- Descriptions
- 1.
- Conductor
- 2.
- Insulation
- 3.
- Semi Conducting Screen
- 4.
- Metal Shield
- 5.
- Outer Sheath
- 12.
- Armour
- 13.
- Inner Sheath
- Kit Components
- No
- Descriptions
- Qty .
- 6.
- Terminal Sleeve
- 3 Nos.
- 7.
- Non-Tracking Weather Resistant Tubing
- 3 Nos.
- 8.
- Stress Control Tubing
- 3 Nos.
- 9.
- Rain Shed
- 6 Nos
- 10.
- Non-Tracking Cable Break Out
- 1 No.
- 11.
- Tinned Copper Earth Braid
- 1 No.
- 14.
- Worm Drive Clips
- 2 Nos.
- 15.
- Mastic Sealing Tape
- 1 Roll.
- 16.
- Terminal Lug
- 3 Nos.
- 17.
- Lug Sealing Tape
- 3 Nos.
- 18.
- Stress Control Mastic
- 3 Nos.
- Installation aids & Accessories (Part of std. Kits)
- No
- Descriptions
- Qty .
- 1
- Armour Earthing Arrangement (Tinned Copper Braid + Back Up Ring + Jubilee Clamp)
- 1 Set.
- 2
- Metal shield Earthing arrangement (Small Copper Braid + Solder + Flux)
- 1 Set.
- 3
- Silicone Grease
- 3 Nos.
- 4
- Cleaning Tissue
- 3 Nos.
- 5
- Nylon String for Cutting XLPE Insulation
- 1 No.
- 6
- Aloxite Emery Tape
- 3 Nos.
- 7
- Mopping Cloth
- 1 No.
- 8
- Installation Instruction Manual
- 1 No.
Electrical Performance (12 kV Rated Accessories)
- Tests
- Requirement Test Value
- GXO/E-112-Series
- AC Withstand 1 Minute
- 35KV
- Pass
- DC Withstand 30 Minute
- 48 KV
- Pass
- Discharge Extintion Voltage (< 5Pc.)
- 12.7 KV
- >12.7kV
- Impulse Withstand (Crest kV)
- 75 kV
- >75 kV
- Continuous Current Rating
- As Per Cable
- As Per Cable
Accessories and optional items
- Standard Tail Length is 600mm for outdoor and 450mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
- Temperature sensitive paint changes colour when heat shrinking process is complete.
- All kits are supplied with full kit contents for making a termination.
- All Indoor Kits are supplied without rain sheds.
Note
Ordering Informations
- Cable size (sq. mm)
- Outdoor Kit Code
- Indoor Kit Code
- 16-35
- GXO-11
- GXE-11
- 50-95
- GXO-12
- GXE-12
- 120-185
- GXO-13
- GXE-13
- 240-300
- GXO-14
- GXE-14
- 400-500
- GXO-15
- GXE-15
