Heat Shrinkable Joints & Terminations
Cable Joints

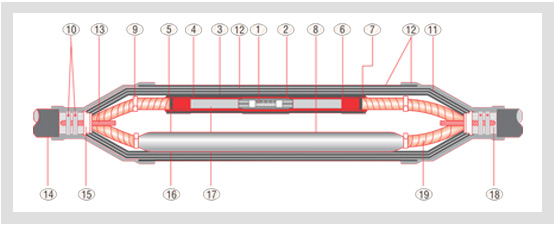

- GXS/1236kv - Series - Heat Shrinkable Straight Through Joints (Waterproof) Suitable for 3 Core XLPE/PVC Insulated Cables for upto 36kv.
BILL OF MATERIAL STD. PACKING KIT ( + )
Cable Components
Kit Components
Installation aids & Accessories (Part of std. kits)
Cable Components
No
Descriptions
14.
Outer Sheath
15.
Inner Sheath
16.
Semi Conducting Core Screen
17.
XPLE Insulation
18.
Armour
19.
Metalic Screen (Copper Foil)
Kit Components
No
Descriptions
Qty .
1
Silicon Grease
3 Nos.
2
Mastic Sealing Tape
1 Roll.
3
HNylon String for Cutting XLPE Inulation
1 No.
4
Aloxite Emery Tape
3 Nos.
5
PVC Adhesive Tape
1 No.
6
Mopping Cloth
1 No.
7
Cleaning Tissue
6 Nos.
8
Installation Instruction Manual
1 No.
Installation aids & Accessories (Part of std. Kits)
No
Descriptions
Qty .
1
lnline Connection (Ferrule)
3 Nos.
2
Stress Control Mastic
6/9 Nos.
3
Heat Shrinkable Streess Control Sleeve (Black)
3 Nos.
4
Heat Shrinkable Insulations (Red) tubings. 12 kV Systems.
3 Nos
24 kV Systems.
6 Nos.
36 kV Systems.
6 Nos.
5
Heat Shrinkable Dual Wall Screend Tubing (Red+Black)
3 Nos.
6
Stress Control Mastic (Grey/Yellow)
6 Strips.
7
Red Mastic
6/9 Nos.
8
Copper Woven Flexible Mesh Tape
3 Roll.
9
G. I. Mesh
1 Roll
10
Solder Tac (Alternetively Roll Spring)
1 Set/3 Nos.
11
Worm Drive Clips
4 Nos.
12
Wraparound Joint Case (Metallic Protection Case)
1 No.
13
Heat Shrinkable Outer Jackting Sleeve (Central 1 No.+Side Sleeve 2Nos.)
3 Nos
14
Tinned Copper Braid (Main Earthing)
1 No
Electrical Performance
Tests
12 kv System (6.6/6.6 KV,6.35/11KV)
15-24kV System (8.7/15KV,11/11KV,12.7/22KV)
36kV (19/33KV)
AC Withstand 1 Minute
35KV
50KV
75KV
DC Withstand 1 Minute
48 KV
96 KV
144 KV
Discharge Extinction Voltage (<5Pc.)< /li>
75 KV(min)
125 KV
170 KV (min)
Impulse Withstand (Crest kV)
75 kV (Min)
125 kV
170 KV (Min)
Continuous Current Rating
As Per Cable
As Per Cable
As Per Cable
Ordering Informations
12 KV System
15 - 24 KV System
36 KV System
Cable size (sq. mm)
Kit Code
Cable size (sq. mm)
Kit Code
Cable size (sq. mm)
Kit Code
16-50
GXS-11
25-50
GXS-21
35-70
GXS-31
70-120
GXS-12
70-95
GXS-22
95-150
GXS-32
120-185
GXS-13
120-150
GXS-23
185-300
GXS-33
240-300
GXS-14
185-240
GXS-24
400
GXS-34
400-500
GXS-15
300-400
GXS-25
