Heat Shrinkable Joints & Terminations
Cable Joints - GPS/1112 - Series - Heat Shrinkable Straight Through Joints (Waterproof) Suitable for 11kv 3 Core PILC Cables (UMAX - 12kv)

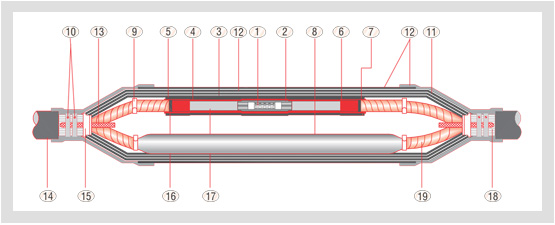

- No
- Descriptions
- No
- Descriptions
- 1
- Heat Shrinkable Adhesive Linend Outer Jacketing
- 11
- Inline Connector (Crimping Type) Ferrule Cu/al.
- 2
- G. I. Wire Mesh
- 12
- Oli Barrier Sleeves
- 3
- Armour/Iead Sheath Earthing Matl. (Copper Braid + Plumbing Metal + Flux + Copper Binding Wire)
- 13
- Insulating Wedge
- 4
- Polymeric Core Seperator.
- 14
- Mastic Sealing Tape
- 5
- Copper Woven Flexible Mesh Tape
- 15
- Cleaning Solvent *
- 6
- Glass Cushion Tape
- 16
- Mopping Cloth *
- 7
- Heat Shrinkable Oil Barrier Sleeve
- 17
- PVC - Na - Tape *
- 8
- Heat Shrinkable Insulating Tubing
- 18
- Silicon Grease *
- 9
- Heat Shrinkable Internal Protection Sleeve
- 19
- Emery Sheet *
- 10
- Insulation Built Up Mastic
- Installation aids & Accessories (Part of std. Kits)
- No
- Descriptions
- Qty .
- 1
- Copper Binding Wire
- 1Roll.
- 2
- Aloxite Emery Tape
- 1 No.
- 3
- Silicon Grease
- 2 Nos.
- 4
- Cleaning Tissue
- 2 Nos.
- 5
- Mopping Cloth
- 1No.
- 6
- Installation Instruction Manual
- 1No.
Electrical Performance
- Tests
- Requirement
- Typical Value
- A.C. Withstand Voltage
- 35kV / 1 Minute
- Pass
- D.C. Voltage Withstand Test
- 48kV / 30 Minutes
- Pass
- Lightening Impulse Withstand Voltage
- 75 KV
- 95 KV
Ordering Informations
- Cable Size (sq.mm.)
- Kit Code
- 16-35
- GPS-11
- 50-95
- GPS-12
- 120-185
- GPS-13
- 240-400
- GPS-14
- 500-630
- GPS-15
- All kits are supplied with full kit contents for making a straight through joint.
NOTE
