Heat Shrinkable Joints & Terminations
Cable Terminations -GPO/E - 1112 - Series Heat Shrinkable Terminations Suitable for 3 Core Paper Insulated Lead Covered MIND Cable For 12 kV
Descriptions : GPO / E - 1112 - Series Class I termination kits are Heat Shrinkable terminations kits designed for 3 Core Paper Insulated Lead Covered Armoured / Screened PILC Cables.
BILL OF MATERIAL STD. PACKING KIT (+)

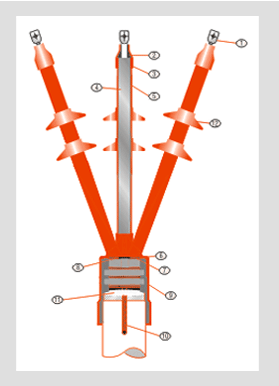

- Kit Components
- Installation aids & Accessories (Part of std. kits)
- Kit Components
- No
- Descriptions
- Qty .
- 1.
- Terminal Lug
- 3 Nos.
- 2.
- Lug Sealing Mastic
- 3 Strips
- 3.
- Terminal Sleeve
- 3 Nos.
- 4.
- Oil Barrier Sleeve
- 3 Nos.
- 5.
- Non Tracking Weather Resistant Sleeve
- 3 Nos.
- 6.
- Stress Control Sleeve
- 3 Nos.
- 7.
- Belting Oil Barrier Sleeve
- 1 No.
- 8.
- Glass Cushion Tape
- 1 No.
- 9.
- Cable Breakout
- 1 No.
- 10.
- Earthing Connection Lead
- 1 No.
- 11.
- Earthing Plumb
- 1 Set.
- 12.
- Rain Sheds
- 6 Nos.
- Installation aids & Accessories (Part of std. Kits)
- No
- Descriptions
- Qty .
- 1
- Mastic Sealing Tape
- 1 Roll.
- 2
- Cleaning Solvent
- 1 Bottle.
- 3
- Emery Sheet
- 1 No.
- 4
- Mopping Cloth
- 1 Pc.
- 5
- Installation Instruction Manual
- 1 No.
Electrical Performance (12 kV Rated Accessories)
- Tests
- Requirement
- Typical Value
- A.C. Dry Withstand Voltage
- 35 kV / 1 Minute
- Pass
- D.C. Voltage Withstand Test
- 48 kV / 30 Minutes
- Pass
- Lightening Impulse Withstand Voltage
- 75 kV
- > 75 kV
Accessories and optional items
- Standard Tail Length is 600mm for outdoor and 450mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
- All kits are supplied with full kit contents for making a termination.
- All Indoor Kits are supplied without rain sheds.
Note
Ordering Informations
- Cable size (sq. mm)
- Outdoor Kit Code
- Indoor Kit Code
- 16-35
- GPO-11
- GPE-11
- 50-95
- GPO-12
- GPE-12
- 120-185
- GPO-13
- GPE-13
- 240-400
- GPO-14
- GPE-14
- 500
- GPO-15
- GPE-15
